Over-voltage monitoring relay CRV1-37

phase sequencephase lossvoltage

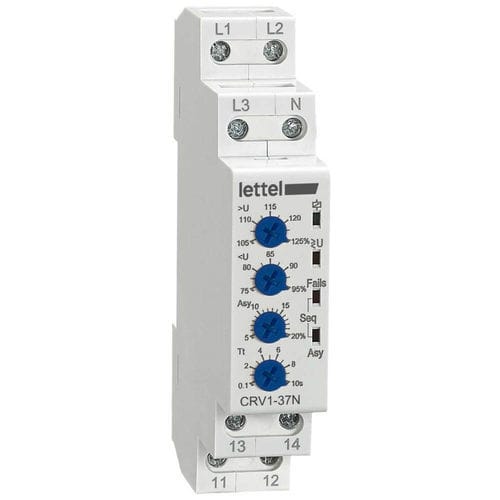

The CRV1-37 relay switches when the voltage of one of the phases exceeds the minimum or maximum thresholds, in case of asymmetry or phase inversion: - Electrical: CRV1-37: for three-phase network without neutral Un = 400V. CRV1-37N: for tetra network (three-phase + neutral) Un = 230/400V. - Output contact: Single-pole changeover contact 8A/250V. Relay trip delay adjustable from 0.1 to 10s. Hysteresis 2%. - Physical: 1 module width housing (18mm), DIN rail mountable. 4 LEDs to indicate contact status, mini/maxi threshold reach, phase cut-off, and asymmetry. - Relay switching: The relay switches under the following conditions: – The voltage of one of the phases exceeds the set mini or maxi thresholds (for a duration exceeding the delay), – Phase sequencing inversion, – Absence of voltage on one of the phases, – Voltage difference between 2 phases exceeding the set % (asymmetry). - Settings: The numerous settings of the multifunction relay allow adaptation to all applications: - Mini voltage threshold adjustable from 75 to 95% Un - Maxi voltage threshold adjustable from 105 to 125% Un - Phase asymmetry threshold adjustable from 5 to 20% - Relay trip delay adjustable from 0.1 to 10s. - Applications: The multifunction modular protection relay is used in tertiary and industrial electrical panels. Its relay protects devices and electrical circuits from inappropriate voltages and alerts in case of abnormal voltage values, asymmetry, or phase inversion. - Standards and certifications: Compliances: CE, RoHs, REACH. Applicable standards: EN 60255-1, EN 60255-26 & -27. Characteristics / Technical Specifications: - Models: CRV1-37 (three-phase without neutral), CRV1-37N (tetra, three-phase + neutral) - Nominal voltage: 400V (CRV1-37), 230/400V (CRV1-37N) - Output contact: single-pole changeover 8A/250V - Trip delay: adjustable from 0.1 to 10s - Hysteresis: 2% - Housing: 1 module (18mm), DIN rail - Signaling: 4 LEDs (contact status, mini/maxi thresholds, phase cut-off, asymmetry) - Mini threshold: 75 to 95% Un - Maxi threshold: 105 to 125% Un - Asymmetry: 5 to 20% - Standards: CE, RoHs, REACH, EN 60255-1, EN 60255-26 & -27
