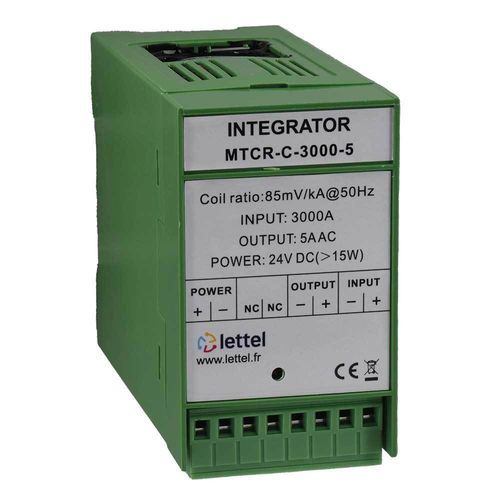

Integrator MTCR-C-x-5

Description: Conversion of mV signal to 0-5A current, allowing the connection of 1 Rogowski coil to a meter or a central unit with a 5A current input. - Electrical: - 1 mV input for connecting 1 Rogowski coil. - 1 output 0-5A. - 24V DC power supply. - Physical: - DIN rail mounting. - 45 mm width housing. - Features: - Allows connection of MTCR Rogowski coils to a meter or measuring unit with a 5A input. - Standards and Certifications: - CE, RoHS, REACh. - Associated Products: - MTCR Rogowski Coil: for measuring current on each phase. - Power Supply: AMP2-30-24 power supply for powering the MTCR-C-x-5 converter. Variants and Order Codes: The second to last number in the order code of the converters corresponds to the primary current of the associated Rogowski coils. For example, the MTCR-C-3000-1 converter is suitable for MTCR-150-3000 coils (primary current 3000A). Order Code | Primary Current | Stock Status MTCR-C-300-5 | 300A | instock MTCR-C-600-5 | 600A | instock MTCR-C-1000-5 | 1000A | instock MTCR-C-3000-5 | 3000A | instock MTCR-C-6000-5 | 6000A | outofstock Characteristics / Technical Specifications: - Input: mV for Rogowski coil - Output: 0-5A - Power Supply: 24V DC - Mounting: DIN rail - Housing Width: 45 mm - Compliance: CE, RoHS, REACh
