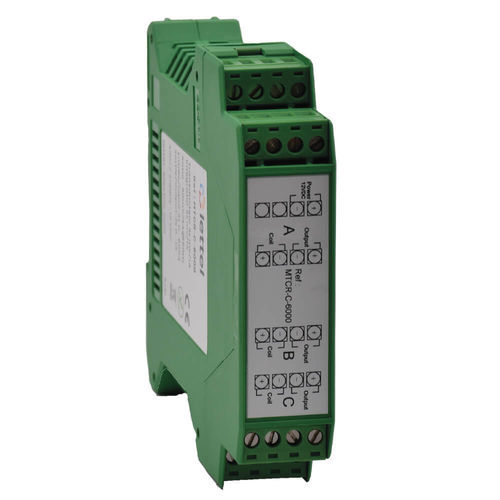

Signal converter MTCR-C series

measuringDIN rail mounted

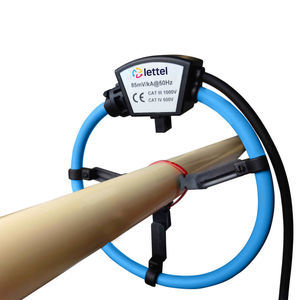

Description: Conversion of mV signal to 0-1A current, allowing connection of 3 Rogowski coils to a meter or a central unit with a 1A current input. Characteristics: - Electrical: - 3 mV inputs for connecting up to 3 Rogowski coils. - 3 outputs 0-1A. - 12V DC power supply. - Physical: - DIN rail mounting. - 22.5 mm width housing. Functionalities: - Integration: - Allows connection of MTCR Rogowski coils to a meter or measuring central unit with a 1A input. Standards and Certifications: - Conformities: - CE, RoHS, REACh. Associated Products: - MTCR Rogowski Coil: for measuring current on each phase. - Power Supply: MTCR-A-12 module with primary voltage 230V AC and secondary 12V DC to power the MTCR-C converter. Variants and Order Codes: The second to last number of the converter's order code corresponds to the primary current of the associated Rogowski coils. For example, the MTCR-C-3000-1 converter is suitable for MTCR-150-3000 coils (primary current 3000A). Order Code | Primary Current | Stocked Product MTCR-C-100-1 | 100A | instock MTCR-C-300-1 | 300A | instock MTCR-C-600-1 | 600A | instock MTCR-C-1000-1 | 1000A | instock MTCR-C-3000-1 | 3000A | instock MTCR-C-6000-1 | 6000A | instock Resources: - Current Transformers - All about Rogowski current sensors - Meters and central units for Rogowski coils Technical Specifications: - 3 mV inputs for 3 Rogowski coils - 3 outputs 0-1A - 12V DC power supply - DIN rail mounting - 22.5 mm width housing - CE, RoHS, REACh compliance
