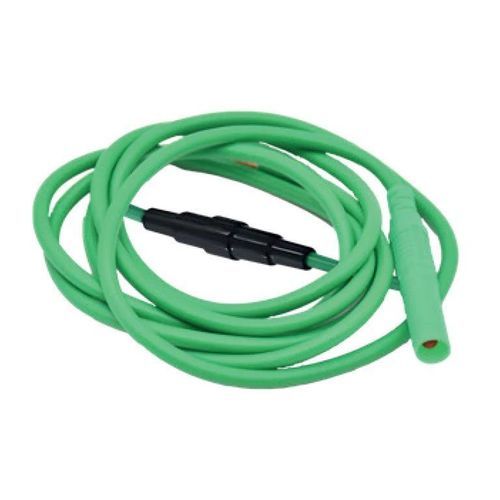

Power cord with plug MTCR-CU series

Product Description: Cable with tip allowing the retrieval of the voltage captured by the fixing screw of the MTCR-SV support. Physical characteristics: - Cable length: 3m with tip for retrieving voltage from the fixing screw of the MTCR-SV support. - MTCR-CUF models are equipped with a replaceable fast-blow 500mA fuse. - Available insulator colors: red, green, yellow, and blue. Integration: - Simply insert the tip into the hole of the MTCR-SV support. Integrated protection: - The combination of MTCR opening loops and the MTCR-CUF voltage pickup cord allows the addition of a metering point in a non-intrusive way, without intervening on the installation wiring. Associated products: - Mounting support and voltage pickup: MTCR-SV - Compatible Rogowski loops: MTCR-100-1000, MTCR-150-3000, MTCR-200-6000, MSC-TCR (1000/2000/3000) Available variants: - Other cable lengths available on request. Ordering Codes Table: Order Code | Color | Integrated Protection | Stocked Product MTCR-CUF-3Y | Yellow | Fast-blow fuse 500mA | In stock MTCR-CUF-3R | Red | Fast-blow fuse 500mA | In stock MTCR-CUF-3G | Green | Fast-blow fuse 500mA | In stock MTCR-CUF-3B | Blue | Fast-blow fuse 500mA | In stock MTCR-CU-3Y | Yellow | None | In stock MTCR-CU-3R | Red | None | In stock MTCR-CU-3G | Green | None | In stock MTCR-CU-3B | Blue | None | In stock Technical characteristics / specifications: - Length: 3 meters (other lengths available on request) - Tip for voltage pickup via MTCR-SV support - MTCR-CUF models: equipped with replaceable fast-blow 500mA fuse - Insulator colors: red, green, yellow, blue - Compatible with MTCR-SV support and Rogowski loops (MTCR-100-1000, MTCR-150-3000, MTCR-200-6000, MSC-TCR)
