Rogowski coil current transducer MTCR-200-6000

clampflexible

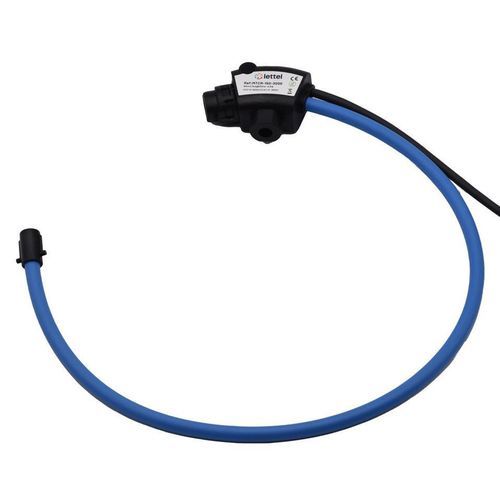

The MTCR Rogowski loops combine precision with ease of integration: - Electrical: The MTCR-200-6000 Rogowski measuring loop measures a current range up to 6000A. - Physical: Loop length 665 mm, opening Ø 200 mm. Mounting on busbar or cable using the supplied clamp or mounting accessories. 2 m wire outputs. IP68 protection. - Accuracy: Class 0.5% over the entire range. - Integration: Thanks to their opening core, installation of the current loops is possible without disconnecting power cables. Their flexibility allows easy installation in tight or hard-to-reach spaces. - Safety: mV output, so no heating or risk of overcurrent. - Associated products: - MTCR-C transducers: The converters transform the mV loop signal into 0-1A or 0-5A, so the Rogowski loops can be used with a meter or a central unit with a 1A or 5A input. - Central units and meters for Rogowski loops: Lettel offers measuring instruments to be directly associated with Rogowski current loops: - MCX4-34V: three-phase modular meter - MAE-96V: panel-mounted measuring central units. The Rogowski measuring cores can be connected: - Directly to modular electric meters MCX4-34V or to panel-mounted measuring central units MAE-96V - To any meter or central unit with a 1A input using the converter MTCR-C-x-1 - To any meter or central unit with a 5A input using the converter MTCR-C-x-5 - Mounting accessories ensure optimal accuracy class: - Mounting on cable: MTCR-S3 - On busbar or cable: MTCR-SV - With voltage pickup cord: MTCR-CU - Accessories: - MTCR-S3: Triaxial mounting support for fixing the Rogowski loop on a round conductor (cable). - MTCR-CU: Mounting support for fixing the Rogowski loop on a busbar. - MTCR-SV: Voltage pickup cord to be used with the MTCR-CU mounting support. - Standards and certifications: - Applicable standards: EN61010-1:2010 +A1:2019, EN/IEC61010-2-032:2021 +A11:2021, EN/IEC61326-1:2021. - Conformities: CE, RoHS, REACh. - Technical features / specifications: - Current measurement range: up to 6000A - Loop length: 665 mm - Opening diameter: 200 mm - Mounting: on busbar or cable (clamp or accessories supplied) - Output wires: 2 meters - Protection: IP68 - Accuracy class: 0.5% - Output: mV - Standards: EN61010-1:2010 +A1:2019, EN/IEC61010-2-032:2021 +A11:2021, EN/IEC61326-1:2021 - Conformities: CE, RoHS, REACh
