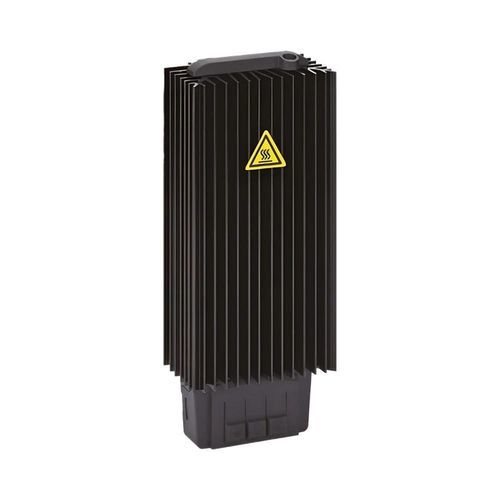

Electrical cabinet heater GTA-R series

electric

Description: Heating resistor for electrical cabinets, available in multiple power ratings. Prevents condensation and provides optimal protection for components. Electrical: PTC resistor with temperature limiter. Voltages: 24V / 48V / 120V / 230V. Available power ratings: 15W / 30W / 45W / 60W / 75W / 100W / 150W / 200W. Integration: DIN rail mounting. Housing dimensions: 15/30/45W: 69.7 x 50 x 65 mm 60/75/100W: 69.7 x 50 x 88 mm 150W: 69.7 x 50 x 100 mm 200W: 69.7 x 50 x 150 mm Connection via pressure terminals. Applications: Triggered by the GTA-THR thermostat, the resistor heats the electrical cabinet. Operation: The resistor converts power into heat. Its capacity is measured in Watts. A small rail allows height adjustment of the resistor. Adjustable height mounting: Allows flexible installation in the cabinet. Circuit mounting diagram: Possible mounting with thermostat in circuit. Compliance: CE, RoHs, REACH. Variants and order codes: Order Code | Power | Supply Voltage | Stock Status GTA-R-12-15 | 15W | 12 VDC | outofstock GTA-R-24-15 | 15W | 24 VDC | outofstock GTA-R-48-15 | 15W | 48 VDC | outofstock GTA-R-230-15 | 15W | 120-260 VAC/DC | instock GTA-R-12-30 | 30W | 12 VDC | outofstock GTA-R-24-30 | 30W | 24 VDC | outofstock GTA-R-48-30 | 30W | 48 VDC | outofstock GTA-R-230-30 | 30W | 120-260 VAC/DC | instock GTA-R-12-45 | 45W | 12 VDC | outofstock GTA-R-24-45 | 45W | 24 VDC | outofstock GTA-R-48-45 | 45W | 48 VDC | outofstock GTA-R-230-45 | 45W | 120-260 VAC/DC | instock GTA-R-12-60 | 60W | 12 VDC | outofstock GTA-R-24-60 | 60W | 24 VDC | outofstock GTA-R-48-60 | 60W | 48 VDC | outofstock GTA-R-230-60 | 60W | 120-260 VAC/DC | instock GTA-R-12-75 | 75W | 12 VDC | outofstock GTA-R-24-75 | 75W | 24 VDC | outofstock GTA-R-48-75 | 75W | 48 VDC | outofstock GTA-R-230-75 | 75W | 120-260 VAC/DC | instock GTA-R-12-100 | 100W | 12 VDC | outofstock GTA-R-24-100 | 100W | 24 VDC | outofstock GTA-R-48-100 | 100W | 48 VDC | outofstock GTA-R-230-100 | 100W | 120-260 VAC/DC | instock GTA-R-12-150 | 150W | 12 VDC | outofstock GTA-R-24-150 | 150W | 24 VDC | outofstock GTA-R-48-150 | 150W | 48 VDC | outofstock GTA-R-230-150 | 150W | 120-260 VAC/DC | instock GTA-R-12-200 | 200W | 12 VDC | outofstock GTA-R-24-200 | 200W | 24 VDC | outofstock GTA-R-48-200 | 200W | 48 VDC | outofstock GTA-R-230-200 | 200W | 120-260 VAC/DC | instock Features / Technical Specifications: Type: Heating resistor for electrical cabinet Technology: PTC with temperature limiter Available voltages: 12V, 24V, 48V, 120-260V AC/DC Available power ratings: 15W to 200W Mounting: DIN rail Connection: Pressure terminals Dimensions (according to power): 15/30/45W: 69.7 x 50 x 65 mm 60/75/100W: 69.7 x 50 x 88 mm 150W: 69.7 x 50 x 100 mm 200W: 69.7 x 50 x 150 mm Compliance: CE, RoHs, REACH
