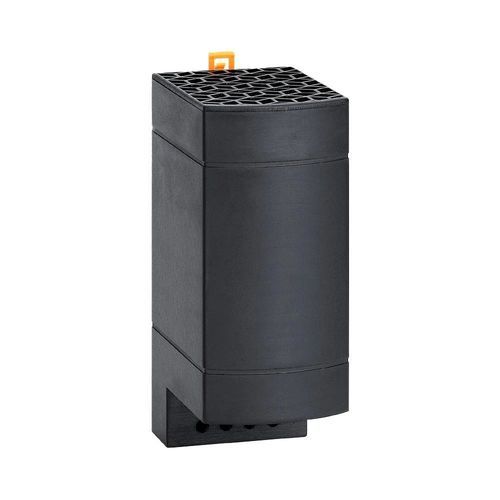

PTC heating element GTA-RI-230 series

for electrical cabinetwith thermostat

The insulated heating resistors prevent burns upon contact with the casing. - **Electrical:** - Voltage: 230V. - PTC resistor with temperature limiter. - Insulated casing to prevent burns upon contact. - **Integration:** - DIN rail mounting. - Casing dimensions: - GTA-RIV-230-50: H110 x W60 x D90 mm - GTA-RIV-230-100/150: H150 x W60 x D90 mm - Connection via screw terminals. - **Circuit Mounting Diagram:** - The resistor and thermostat are mounted in a circuit. - **Operation:** - The resistor converts power into heat. Its capacity is measured in Watts. - **Applications:** - Triggered by the GTA-THR thermostat, the resistor heats the electrical cabinet. - **Compliance:** - CE, RoHs, REACH. - **Variants and Order Codes:** - GTA-RI-230-50: 50W, in stock - GTA-RI-230-100: 100W, in stock - GTA-RI-230-150: 150W, in stock - **Available Documents:** - Range presentation (PDF) - General catalog (PDF) - Product sheet (PDF) - **Features / Technical Specifications:** - Type: PTC heating resistor for electrical cabinet - Power: 50W, 100W, 150W - Voltage: 230V - Mounting: DIN rail - Insulated casing - Connection: Screw terminals - Dimensions: - GTA-RIV-230-50: H110 x W60 x D90 mm - GTA-RIV-230-100/150: H150 x W60 x D90 mm - Compliance: CE, RoHs, REACH
