PTC heating element GTA-RI-230 series
for electrical cabinetwith thermostat

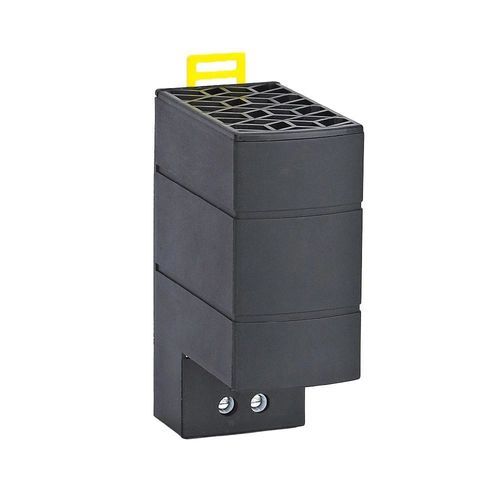

PTC heating element - GTA-RI-230 series - Lettel - for electrical cabinet / with thermostat

PTC heating element - GTA-RI-230 series - Lettel - for electrical cabinet / with thermostat - image - 2

Add to favorites

Compare this product

Go to the Lettel website for more information

Characteristics

Type

PTC

Applications

for electrical cabinet

Other characteristics

with thermostat

Power

10 W, 20 W, 30 W
(0.01 hp, 0.03 hp, 0.04 hp)

Maximum temperature

Max.: 70 °C
(158 °F)

Min.: -45 °C
(-49 °F)

Description

The insulated heating resistors prevent burns upon contact with the casing. - **Electrical Characteristics:** - Voltage: 230V - PTC resistor with temperature limiter - Insulated casing to prevent burns upon contact - **Integration:** - DIN rail mounting - Casing dimensions: H96 x W38 x D79 mm - Connection via screw terminals - **Operation:** - The resistor converts power into heat. Its capacity is measured in Watts. - **Applications:** - Triggered by the GTA-THR thermostat, the resistor heats the electrical cabinet. - **Standards and Certifications:** - Compliance: CE, RoHs, REACH - **Variants and Order Codes:** - **Order Code** | **Power** | **Stock Status** - GTA-RI-230-10 | 10W | instock - GTA-RI-230-20 | 20W | instock - GTA-RI-230-30 | 30W | instock - **Technical Specifications:** - Supply Voltage: 230V - Available Power: 10W, 20W, 30W - Type: PTC resistor with temperature limiter - Mounting: DIN rail - Dimensions: H96 x W38 x D79 mm - Connection: Screw terminals - Insulated casing - Compliance: CE, RoHs, REACH
