DIN rail-mounted terminal block DBB-PB series

screw connectioninsulated12-pole

Overview

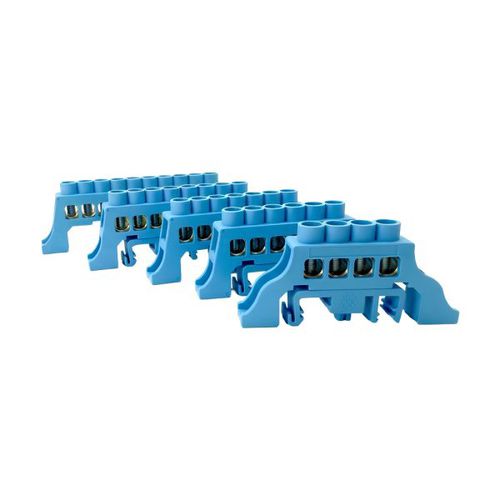

Blue connection strips — 4 to 12 poles. Terminal block designed to provide reliable connection and distribution of conductors in electrical installations. Intended for DIN-rail mounting to enable fast, organized installation in electrical panels and cabinets.

Features

• Applications: connection and distribution of conductors in electrical installations.
• Typical uses: wiring of distribution boards, industrial control cabinets, residential and commercial electrical installations, conductor grouping and distribution.
• Brass busbar with high conductivity for reliable current flow and secure connections.
• Quick and organized DIN-rail mounting.

Characteristics (overview)

• Materials: brass busbar (high conductivity), zinc-plated steel screws, housing in nylon PA66 UL94 V-0.
• Mounting: DIN-rail.
• Terminal diameter: Ø7 mm.
• Connection capacity: 2.5–16 mm².
• Rated voltage: 250–400 V.
• Fully insulated busbar for installation safety.

Variants and order codes
Order code | Number of poles | Cable section | Dimensions | Availability
DBB-P04B | 4 | 2.5–16 mm² | 37 x 57 x 13 mm | in stock
DBB-P06B | 6 | 2.5–16 mm² | 37 x 57 x 13 mm | in stock
DBB-P08B | 8 | 2.5–16 mm² | 37 x 78 x 13 mm | in stock
DBB-P10B | 10 | 2.5–16 mm² | 37 x 89 x 13 mm | in stock
DBB-P12B | 12 | 2.5–16 mm² | 37 x 102 x 13 mm | in stock

Download
Product range brochure and earth collector documentation available (PDF).

Technical specifications

• Commercial reference: DBB-PB (variants: DBB-P04B, DBB-P06B, DBB-P08B, DBB-P10B, DBB-P12B).
• Color: blue.
• Busbar: brass, high conductivity.
• Screws: zinc-plated steel.
• Housing: nylon PA66 UL94 V-0 (insulating).
• Mounting: DIN-rail.
• Terminal diameter: Ø7 mm.
• Compatible conductor cross-section: 2.5–16 mm².
• Rated voltage: 250–400 V.
• Dimensions (by variant): 37 x 57 x 13 mm to 37 x 102 x 13 mm.
• Fully insulated product for installation safety.
• Availability: in stock (for listed variants).
