DIN rail-mounted terminal block DBB-PG seriesscrew connectionplasticinsulated
Add to favorites
Compare this product
Characteristics
- Mounting
- DIN rail-mounted
- Connection
- screw connection
- Other characteristics
- plastic, insulated, copper
- Number of poles
- 6-pole, 8-pole, 12-pole, 4-pole, 10-pole
- Cross-section
Max.: 16 mm²
(0.02 in²)Min.: 2.5 mm²
(0 in²)- Nominal voltage
Max.: 400 V
Min.: 250 V
Description
Presentation

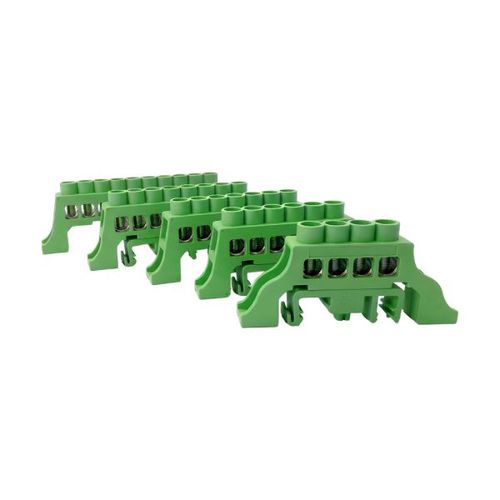

Green terminal blocks – available with 4 to 12 poles. Terminal block designed to connect and distribute conductors in electrical installations. Intended for DIN-rail mounting, it enables fast and tidy installation in electrical panels and enclosures.
Features
Characteristics
Variants and order codes
Order code | Number of poles | Cable section | Dimensions | Stock status
DBB-P04G | 4 | 2.5 – 16 mm² | 37 x 57 x 13 mm | instock
DBB-P06G | 6 | 2.5 – 16 mm² | 37 x 57 x 13 mm | instock
DBB-P08G | 8 | 2.5 – 16 mm² | 37 x 78 x 13 mm | instock
DBB-P10G | 10 | 2.5 – 16 mm² | 37 x 89 x 13 mm | instock
DBB-P12G | 12 | 2.5 – 16 mm² | 37 x 102 x 13 mm | instock
Presentation documents
Product brochure available (overview of the range of terminal blocks and earth collectors).
Technical specifications
Green terminal blocks – available with 4 to 12 poles. Terminal block designed to connect and distribute conductors in electrical installations. Intended for DIN-rail mounting, it enables fast and tidy installation in electrical panels and enclosures.
Features
- Applications: terminal block for connecting and distributing conductors in electrical installations.
- High-conductivity brass busbar ensures excellent current flow and reliable connections.
- Typical uses:
- Wiring of electrical panels
- Industrial electrical cabinets
- Residential and commercial electrical installations
- Distribution and grouping of conductors
Characteristics
- Physical:
- High-conductivity brass busbar
- Zinc-plated steel screws
- Body in nylon PA66 UL94 V-0
- Installation and connection:
- DIN-rail mounting
- Terminal diameter: Ø7 mm
- Connection capacity: 2.5 mm² – 16 mm²
- Rated voltage: 250 - 400 V
- Safety:
- Fully insulated busbar
Variants and order codes
Order code | Number of poles | Cable section | Dimensions | Stock status
DBB-P04G | 4 | 2.5 – 16 mm² | 37 x 57 x 13 mm | instock
DBB-P06G | 6 | 2.5 – 16 mm² | 37 x 57 x 13 mm | instock
DBB-P08G | 8 | 2.5 – 16 mm² | 37 x 78 x 13 mm | instock
DBB-P10G | 10 | 2.5 – 16 mm² | 37 x 89 x 13 mm | instock
DBB-P12G | 12 | 2.5 – 16 mm² | 37 x 102 x 13 mm | instock
Presentation documents
Product brochure available (overview of the range of terminal blocks and earth collectors).
Technical specifications
- High-conductivity brass busbar
- Zinc-plated steel screws
- Body in nylon PA66 UL94 V-0
- DIN-rail mounting
- Terminal diameter Ø7 mm
- Connection capacity 2.5 – 16 mm²
- Rated voltage 250 – 400 V
- Fully insulated busbar
