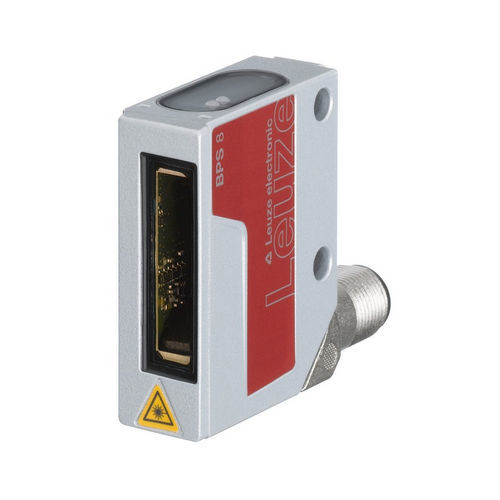

Barcode positioning system BPS 8 SM 102-02

multi-axislaser

Data telegram - Binary protocol 2 MTTF - 67.5 years Depth of field - 80 ... 140 mm Light source - Laser, Red Laser class - 2, IEC/EN 60825-1:2014 Transmitted-signal shape - Continuous Light beam exit - Front Measurement range - 0 ... 10,000,000 mm Reproducibility (1 sigma) - 0.15 ... 1 mm Measurement value output - 3.3 ms Max. traverse rate - 4 m/s Supply voltage UB - 4.75 ... 5.5 V, DC Current consumption, max. - 250 mA Number of inputs/outputs selectable - 1 Piece(s) Type - RS 232 Type - RS 232 Function - Service Function - Connection to device Type of connection - Connector Thread size - M12 Type - Male Material - Metal No. of pins - 5 -pin Encoding - A-coded
