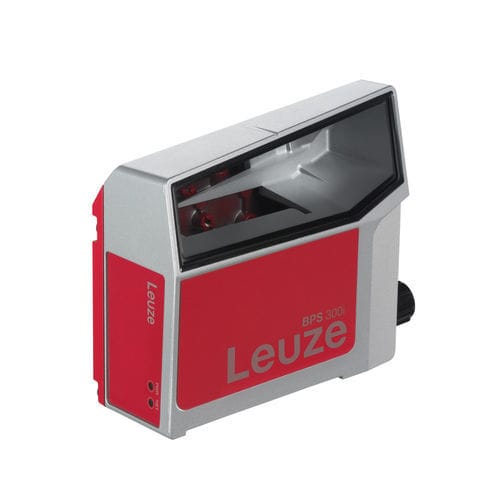

Barcode positioning system BPS 307i SM 100

multi-axislaser

MTTF - 83 years Depth of field - 50 ... 170 mm Light source - Laser, Red Laser class - 1, in accordance with IEC 60825-1:2014 (EN 60825-1:2014) Transmitted-signal shape - Continuous Light beam exit - Lateral Measurement range - 0 ... 10,000,000 mm Reproducibility (1 sigma) - 0.05 mm Measurement value output - 0.05 ... 2 ms Max. traverse rate - 10 m/s Supply voltage UB - 18 ... 30 V, DC Power consumption, max. - 3.7 W Number of inputs/outputs selectable - 2 Piece(s) Switching element - Transistor, PNP Type - SSI Function - Process Type - USB Function - Configuration/parameterization via integrated web server Service Design - Cubic Dimension (W x H x L) - 100 mm x 108.7 mm x 48.3 mm Housing material - Metal Lens cover material - Glass Net weight - 580 g Type of fastening - Dovetail grooves Fastening on back Via optional mounting device Type of display - LED Ambient temperature, operation - -5 ... 50 °C Ambient temperature, storage - -35 ... 70 °C Relative humidity (non-condensing) - 90 % Degree of protection - IP 65, EN 60529 with various connectors or screwed-on caps Protection class - III Approvals - c UL US Test procedure for EMC in accordance with standard - EN 61000-6-2 EN 61000-6-3 Test procedure for shock in accordance with standard - IEC 60068-2-27, test Ea Test procedure for continuous shock in accordance with standard - IEC 60068-2-29, test Eb Test procedure for vibration in accordance with standard - IEC 60068-2-6, test Fc
