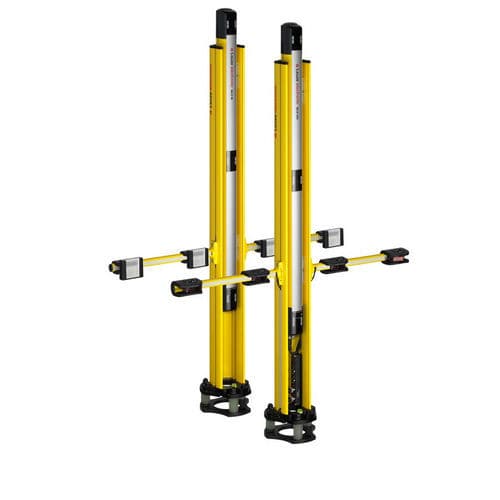

Safety sensor MLDSET-M2-1600T4

Special version - Integrated muting indicator Functions - Alternative connection for second muting signal Contactor monitoring (EDM), selectable Muting-timeout extension Muting enable function Start/restart interlock (RES), selectable Integrated laser alignment aid - No Reflective element for laser alignment aid - No Integrated muting indicator - Yes Integrated status indicator - Yes Muting type - Timing controlled 4-sensor muting Type - 4, IEC/EN 61496 SIL - 3, IEC 61508 SILCL - 3, IEC/EN 62061 Performance Level (PL) - e, EN ISO 13849-1 PFHD - 6.6E-09 per hour Mission time - 20 years, EN ISO 13849-1 Category - 4, EN ISO 13849 Operating range - 0.5 ... 6 m Number of beams - 3 Piece(s) Beam spacing - 400 mm Type of muting sensors - PRK 25C retro-reflective photoelectric sensors With device column - Yes Number of muting sensors - 4 Piece(s) Column height without foot - 1,600 mm
