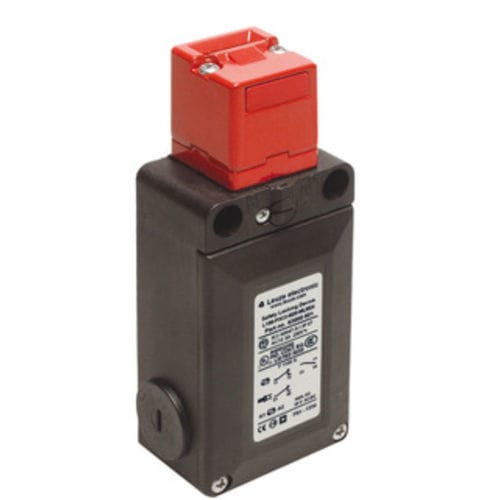

Safety locking device L100-P4C3-M20-SLM24

for switch control

Integration in control circuits up to category4 in accordance with EN ISO 13849-1 Locking device with guard interlocking according to ISO 14119 Mechanical guard interlocking (spring-force) Switch-on current reduction, adjustable Operating principle - Quiescent current principle – Actuator locked if electromagnet is deactivated Mission time - 20 years, EN ISO 13849-1 Usage category at DC 13 - Ue / Ie: 24 V / 3 A, 125 V / 0.55 A, 250 V / 0.3 A, EN 60947-5-1 Usage category at AC 15 - Ue / Ie: 250 V / 6 A, 400 V / 4 A, 500 V / 1 A, EN 60947-5-1 Contact allocation, actuator - 1NC Contact allocation, magnet - 2NC Contact opening - Force-fit Magnet operating voltage - 24 V DC, -10 ... 25 % Short circuit protection, magnet - 0.5 A, 24 V, type gG, IEC 60269-1 Short circuit protection, safety circuit - 500 V, 10 A, type aM, IEC 60269-1 Rated insulation voltage - 400 V AC, 500 V DC Conventional thermal current, max. - 10 A Teach input for actuator - No Switch-on time - 100 % Number of connections - 1 Piece(s) Number of cable entries - 3 Piece(s) Function - Contact connection Voltage supply No. of pins - 8 -pin Connection cross sections - 1 x 0.34 mm² to 2 x 1.5 mm², wire Design - Cubic Dimension (W x H x L) - 62.8 mm x 38.2 mm x 135 mm Housing material - Plastic Plastic housing - Glass fiber reinforced (PPS), self-extinguishing Housing color - Black Red Type of fastening - Through-hole mounting Type of cable entry - M20 x 1.5 Switch type - Interlock device with guard interlocking, ISO 14119 Switching principle - Slow-action contact Approach actuation directions - 1 x top 4 x side (90°) Approach speed - 0.001 ... 0.5 m/s Locking type - Spring force
