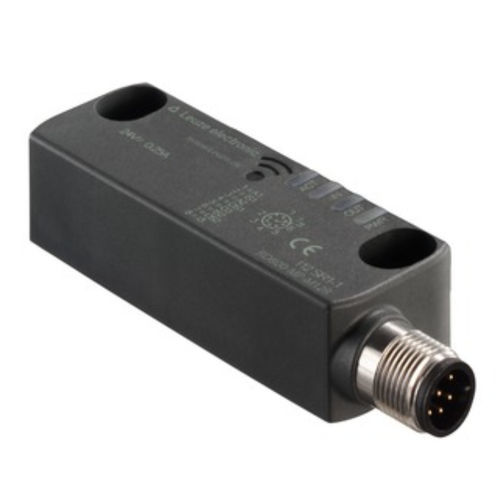

Industrial transponder RD800-MP-M12L

SIL - Up to 3, IEC 61508 SILCL - Up to 3, IEC/EN 62061 PFHD - 1.45E-09 per hour Mission time - 20 years, EN ISO 13849-1 DC - High Protective circuit - Cross circuit protection Short circuit protected Pulse resistance - 1,500 V Usage category at DC 12 - Ue 24 V, Ie 0.25 A, EN 60947-5-1 Supply voltage UB - 24 V, DC, -15 ... 10 % Current consumption, max. - 250 mA Power consumption, max. - 1 W Nominal current, min. - 0.5 mA Overvoltage category - III Fuse, external - 1 A Switching voltage, type. - 24 V Voltage type - DC Current consumption, max. - 5 mA Number of safety-related switching outputs (OSSDs) - 2 Piece(s) Number of digital switching outputs - 1 Piece(s) Switching power, max. - 6 W Type - Safety-related switching output OSSD Switching voltage, type. - 24 V Voltage type - DC Output current, max. - 250 mA Test-pulse length, max. - 0.3 ms Capacitance, max. between an output and GND - 200 nF Capacitance, max. between two outputs - 200 nF Switching element - Transistor, PNP Switching element - Transistor, PNP Type - Digital switching output Switching voltage, type. - 24 V Voltage type - DC Switching current, max. - 100 mA Switching element - Transistor, PNP Function - Signal output Reaction time after removing the actuator, min. - 80 ms Reaction time after removing the actuator, max. - 150 ms Reaction time after shutdown, input, min. - 7 ms Reaction time after shutdown, input, max. - 12 ms Number of connections - 1 Piece(s) Function - Signal OUT No. of pins - 8 -pin Plug outlet - On left side Length of connection cable, max. - 50 m Dimension (W x H x L) - 25 mm x 18 mm x 72 mm
