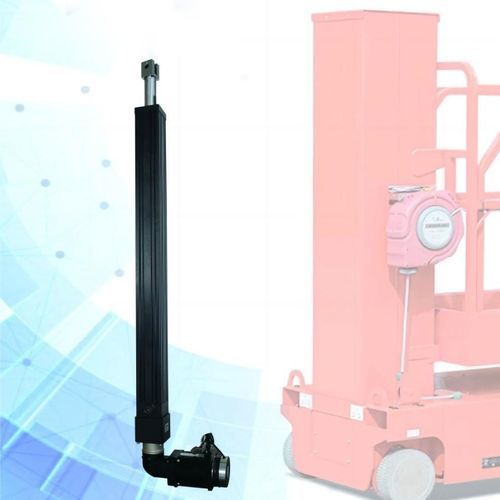

Actuator for lifting applications FMB35-10-838-ST-FO-G06-FCM(NC)-SN electriclinearDC
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Movement
- linear
- Motor
- DC
- Voltage
- 24-volt
- Protection class
- IP54
- Applications
- for lifting applications
- Stroke
838 mm
(32.992 in)- Force
Max.: 22 kN
Min.: 12.5 kN
- Speed
69.4 mm/s
Description
Telescopic Boom Lift Actuator
Vertical Mast Lift Actuator
Item No.: DMB35-10-838-ST-FO-G06-FCM(NC)-SN
Rated Load:15kN Real Load: 12.5kN
Dynamic Load: 22kN
Stroke:838mm
Speed:69.4mm/s at 2500RPM
Mounting:Trunnion
Safety Nut: SN
DC motor: 1200W 4NM 2865RPM 24V,62.5A,IP54;
Ambient Temperature:0-50℃;
Ambient Humidity: <90%, 10Nm brake
Planetary reducer: AER090L1-6
FCM switch 24V DC (NC)
