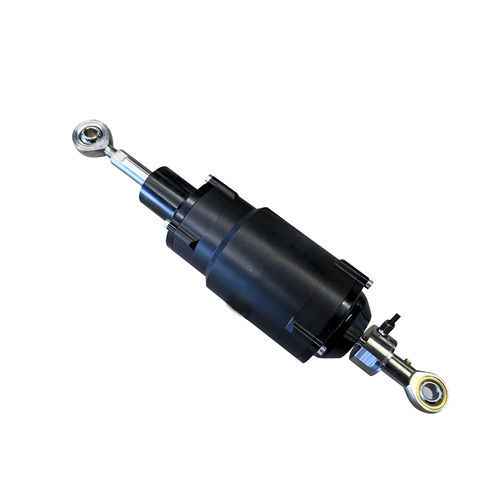

Electric servo-actuator GTR12linearplanetary roller screwIP65
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Movement
- linear
- Technology
- planetary roller screw
- Protection class
- IP65
- Applications
- industrial, for robots, for harsh environments
- Other characteristics
- high-performance, maintenance-free
Description
Robotic integrated servo actuator, built-in planetary roller screw, built-in pressure sensor available Ultra-long lifespan, 10-15 times longer than similar ball screw electric cylinders. High protection level IP65, suitable for harsh working environments. High-performance lubricants, maintenance-free
Tailor-making as requirements, aluminium alloy housing, titanium alloy housing is available, built-in roller screw, or reverse roller screw, external drive
GTR12 Maximum load 500kgs, speed 166mm/s, stroke 90mm, tube diameter 63mm, total length 222mm
GTR10 Maximum load 300kgs, speed 100mm/s, stroke 63mm,tube diameter 62mm, total length 170mm
