Electric stacker truck L1 series
walk-behind24 Vtransport

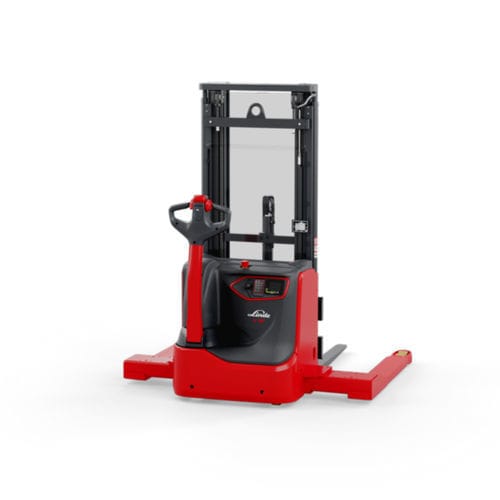

Electric stacker truck - L1 series - Linde Material Handling - walk-behind / 24 V / transport
Electric stacker truck - L1 series - Linde Material Handling - walk-behind / 24 V / transport
Electric stacker truck - L1 series - Linde Material Handling - walk-behind / 24 V / transport - image - 2
Electric stacker truck - L1 series - Linde Material Handling - walk-behind / 24 V / transport - image - 3
Electric stacker truck - L1 series - Linde Material Handling - walk-behind / 24 V / transport - image - 4
Electric stacker truck - L1 series - Linde Material Handling - walk-behind / 24 V / transport - image - 5
Electric stacker truck - L1 series - Linde Material Handling - walk-behind / 24 V / transport - image - 6
Electric stacker truck - L1 series - Linde Material Handling - walk-behind / 24 V / transport - image - 7
Electric stacker truck - L1 series - Linde Material Handling - walk-behind / 24 V / transport - image - 8
Electric stacker truck - L1 series - Linde Material Handling - walk-behind / 24 V / transport - image - 9
Add to favorites
Compare this product

Characteristics

Energy
electric
Operator
walk-behind
Voltage
24 V
Applications
transport, handling, for warehouse, for pallet, for lifting, loading, narrow-aisle, unloading
Other characteristics
compact, straddle, rugged, high-performance, high-speed, low-noise
Carrying capacity

1 t, 1.2 t
(1.1 us ton, 1.3 us ton)

Lifting height

2,924 mm
(115.12 in)

Free lift

150 mm
(5.9 in)

Height of mast when lowered

1,940 mm
(76.4 in)

Height of mast when raised

3,572 mm
(140.63 in)

Overall width

800 mm
(31.5 in)

Overall length

1,993 mm
(78.5 in)

Fork width

80 mm
(3.1 in)

Fork length

1,200 mm
(47.24 in)

Fork thickness

40 mm
(1.57 in)

Fork spacing

690 mm, 858 mm, 1,026 mm
(27.17 in, 33.78 in, 40.39 in)

Turning circle radius

1,575 mm
(62 in)

Battery capacity

250 Ah

Motor power traction

1.1 kW
(1.496 hp)

Motor power lifting

1 kW, 3 kW
(1.36 hp, 4.079 hp)

Travel speed

6 km/h
(3.73 mph)

Lifting speed

0.16 m/s, 0.18 m/s, 0.32 m/s
(0.525 ft/s, 0.591 ft/s, 1.05 ft/s)

Weight

1,034 kg
(2,279.58 lb)

Description

The L10 – L12 B AS electric pedestrian straddle stackers move loads of up to 1.2 tons and reach lifting heights of up to 4.7 meters. They are perfect for light to medium-duty applications. Due to the cantilever forks, they are ideal for stacking closed pallets or for loading roller conveyors that cannot be driven under with wheel arms. Thanks to their short turning radius and flexibly adjustable straddle arms, the compact trucks maneuver effortlessly in the tightest of spaces. The optional proportional speed function automatically adjusts the speed to the tilt angle of the tiller; this ensures that the drivers always maintain the necessary safety distance. Whether in dispatch areas, in the warehouse or production halls: The L10 – L12 B AS is the first choice when pallets and other goods without the option to underride need to be handled quickly and safely.
