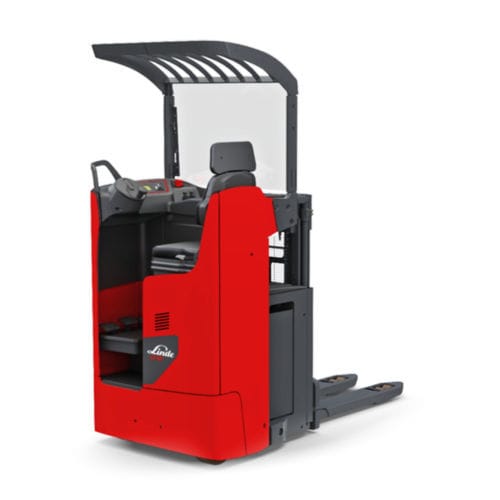

Electric stacker truck D12 RW

side-facing seated24 Vtransport

Ergonomic and fast transport for high handling performance The D12 RW double pallet stacker is a fast and agile all-rounder for the simultaneous transport of two pallets of up to 1,000 kg each. Equipped with a powerful 3-kW three-phase motor, it reaches a speed of up to 12 km/h without load and 10 km/h with load. This makes it particularly suitable for medium and long distances in warehouses with a high handling capacity. It is also ideally adapted for loading and unloading trucks. An ergonomic seating position and intuitive controls allow comfortable, fatigue-free working. The wide chassis of 970 mm ensures a high degree of freedom of movement. Characteristics Safety The D12 RW pallet stacker has three independent braking systems that ensure the safety of the driver and other warehouse staff when in use. The speed is automatically reduced when cornering. A four-point configuration ensures high stability and optimum traction even with maximum load. The wide chassis means that the driver is always protected within the truck contours. The high seating position offers an optimal view of the surroundings. When the fork is lowered, the lifting speed is automatically reduced. This reduces damage to the load and wear on the truck. •Three independent braking systems •Automatic speed reduction in curves •Four-point configuration for high stability •High seating position for optimum all-round visibility •Soft landing function of the fork carriage
