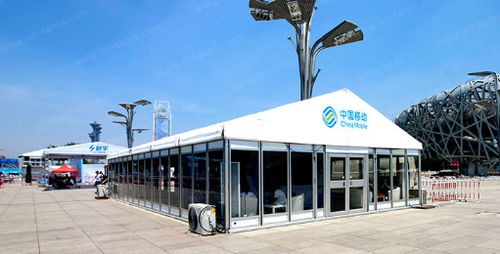

Commercial tent NPT

transportabledisassemblablemodular

General Details
The clear span common widths of New Party Tent series (NPT series) are 3m, 4m, 5m, 6m, 8m, 9m, 10m and 12m; the eave height (side height) is 2.6m. The New Party Tent adopts a modular-combination design so tent length can be extended or decreased by every 3m. Tent frameworks (upright support and roof beam) are made out of 100x48x3mm four-channel high-strength extruded and anodized aluminum (6061/T6). The PVC covers use double PVC-coated polyester textile which is flame retardant up to the European standard DIN 4102 B1, M2, weight 850 g/m2; there are two kinds of PVC fabric choices: blockout and translucent.

Usage and Features
New Party Tent series can be installed in short time; they are easy to install and dismantle without the need for forklift or crane. They can be used for temporary or permanent buildings and are widely used for outdoor temporary exhibition halls, ritual celebrations, wedding parties, product promotions, sports events, temporary warehouses, workshops and emergency relief. All parts are interchangeable.

Key Differences from Old Party Tent Series

• The New Party Tent uses a bar-tensioning system instead of a rubber-tensioning system.
• The sidewall is fixed on the eave beam instead of being hung on the round bar with rings.

Available Accessories
Common optional accessories include:

• PVC clear window sidewalls
• Ground anchor and weight plate
• Lining decoration
• Glass wall and glass door
• ABS hard wall
• Clear PVC roof cover and sidewall
• Flooring system
• Rain gutter
• 1/2 hexagonal gable sides and high peaks on top

Patent
This product has obtained a national patent: ZL201120397654.4

Table - Dimensional Data
Span Width | Eave Height | Ridge Height | Bay Distance | Main Profile
3m | 2.6m | 3.16m | 3m | 100x48x3.0mm (4-channel)
4m | 2.6m | 3.35m | 3m | 100x48x3.0mm (4-channel)
5m | 2.6m | 3.52m | 3m | 100x48x3.0mm (4-channel)
6m | 2.6m | 3.71m | 3m | 100x48x3.0mm (4-channel)
8m | 2.6m | 4.05m | 3m | 100x48x3.0mm (4-channel)
9m | 2.6m | 4.24m | 3m | 100x48x3.0mm (4-channel)
10m | 2.6m | 4.4m | 3m | 100x48x3.0mm (4-channel)
12m | 2.6m | 4.76m | 3m | 100x48x3.0mm (4-channel)

Specifications

• Series name: New Party Tent (NPT) series
• Clear span widths: 3m, 4m, 5m, 6m, 8m, 9m, 10m, 12m
• Eave (side) height: 2.6m
• Modular bay distance: 3m (length can be extended/reduced by 3m increments)
• Ridge heights: see dimensional table above (varies by span)
• Main profile: 100x48x3.0mm extruded anodized aluminum, 4-channel
• Frame material: Aluminum 6061/T6, extruded and anodized
• Cover material: Double PVC-coated polyester textile, flame retardant to DIN 4102 B1, M2, 850 g/m2; available in blockout and translucent options
• Tensioning system: Bar-tensioning (new series) replacing rubber-tensioning
• Sidewall fixing: Fixed on eave beam (new series)
• Installation: Quick modular installation; no forklift or crane required
• Typical uses: Exhibitions, weddings, parties, promotions, sports events, temporary warehouse/workshop, emergency relief
• Patent: ZL201120397654.4
