Commercial tent Dome Mini

transportablemodulardisassemblable

General Details

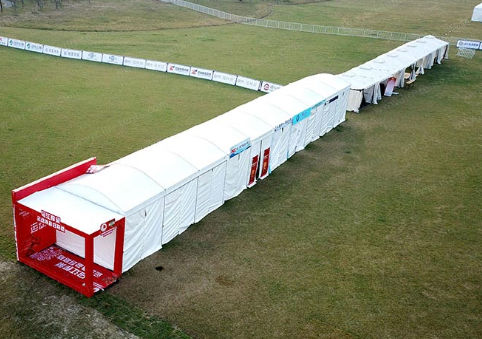

The Dome Mini Party Tent (DMPT Series) is a small-span event tent featuring a dome roof design, offered alongside the A-frame MPT Series. The DMPT structure uses main aluminum profiles 71x36x2.5 mm (2-channel). Standard eave height is 2.6 m and modular bay distance is 3 m. Span options: 3 m, 4 m, 5 m, 6 m and 8 m; length can be extended in 3 m increments.

Design & Improvements
The DMPT replaces elastic-rope eave fixing with a tension-bar system, improving the connection between cover and frame, providing a tidier roof appearance and enhanced structural performance compared with the older PT series.

Applications
This compact dome tent is quick to assemble and dismantle and is suitable for outdoor product displays, brand roadshows, private gatherings and parties, small trade fairs, entrance canopies and shaded walkways.

Optional Accessories

• Cassette (clip-in) wooden flooring system
• Transparent roof cover and sidewalls
• Tempered glass wall system
• Internal roof lining and ceiling
• Curtains and PVC transparent windows
• Weight plates
• Ground anchors

Patents
This product has obtained a national patent: ZL201721469633.2

Product Specification
Span | Eave Height | Ridge Height | Bay Distance | Main Profile
3 m | 2.6 m | 3.0 m | 3 m | 71x36x2.5 mm (2-channel)
4 m | 2.6 m | 3.2 m | 3 m | 71x36x2.5 mm (2-channel)
5 m | 2.6 m | 3.4 m | 3 m | 71x36x2.5 mm (2-channel)
6 m | 2.6 m | 3.6 m | 3 m | 71x36x2.5 mm (2-channel)
8 m | 2.6 m | 4.0 m | 3 m | 71x36x2.5 mm (2-channel)
