Commercial tent DNPT

modulartransportabledisassemblable

Product overview

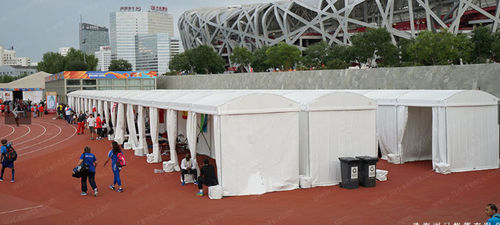

The Dome Party Tent Series is a modular event tent with clear spans available from 3 m to 12 m and an eave height of 2.6 m. Length is modular and can be increased or reduced in 3 m bay increments. Main structural options include 82×48×3 mm (2‑channel) for upright supports and roof beams; other main profile sections are used for specific span ranges as indicated below. The structure is engineered to resist wind speeds up to 80 km/h (wind load 0.3 kN/m2). Assembly and disassembly are quick and storage volume is compact.

Specifications

• Span options: 3 m, 4 m, 5 m, 6 m, 8 m, 9 m, 10 m, 12 m
• Eave height: 2.6 m
• Bay distance (module): 3 m
• Ridge heights (examples): 3 m span — 3.0 m; 4 m — 3.2 m; 5 m — 3.4 m; 6 m — 3.6 m (or 3.48 m depending on profile); 8 m — 4.0 m (or 3.82 m depending on profile); 9 m — 4.0 m; 10 m — 4.18 m; 12 m — 4.52 m
• Main profile options: 71×36×2.5 mm (2‑channel) for spans 3–8 m; 82×48×3 mm (2‑channel) for upright supports and roof beams; 100×48×3 mm (4‑channel) for larger spans (6–12 m)

Notes & patents
Length is modular with 3 m increments. Different documentation references different main profile dimensions for specific span ranges; confirm the required profile for your chosen span when ordering. Patent number(s): ZL201120397654.4; ZL201721469633.2.

Applications

• Event marquees, entrances and covered walkways
• Temporary shelters for exhibitions, festivals and corporate events
