General details

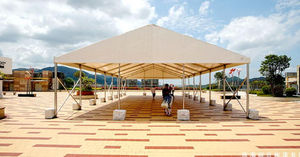

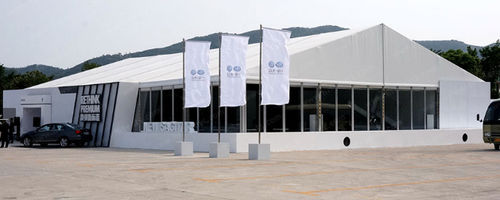

The Gala Marquee (GT series) is a modular clear-span event tent available in 10m, 12m, 15m, 16m, 18m and 20m widths with a standard side (eave) height of 3 m. The structure is designed in 5 m modular bays and can be extended or reduced by 5 m sections. Main frames (upright supports and roof beams) are manufactured from 4-channel hard-pressed extruded aluminium profile 166×88×3 mm. Covers and sidewalls use 850 g/m² PVC-coated polyester fabric, flame-retardant to DIN4102 B1 / M2, available in block-out (opaque) or translucent options.

Accessories

• Sidewalls with clear PVC windows
• Ground anchors
• Weight plates
• Roof lining
• Glass wall system
• Glass door units
• ABS hard walling
• Full clear covers and sidewalls
• Flooring system
• Rain gutter system

Patent
National patent number: ZL201120397654.4

Product specification
Span Width | Eave Height | Ridge Height | Bay Distance | Main Profile
10 m | 3 m | 4.85 m | 5 m | 166×88×3 mm (4-channel)
12 m | 3 m | 5.16 m | 5 m | 166×88×3 mm (4-channel)
15 m | 3 m | 5.64 m | 5 m | 166×88×3 mm (4-channel)
16 m | 3 m | 5.80 m | 5 m | 166×88×3 mm (4-channel)
18 m | 3 m | 6.18 m | 5 m | 166×88×3 mm (4-channel)
20 m | 3 m | 6.55 m | 5 m | 166×88×3 mm (4-channel)

Features / technical specifications

• Series: GT series
• Clear-span options: 10 m, 12 m, 15 m, 16 m, 18 m, 20 m
• Standard eave (side) height: 3 m
• Ridge heights: see specification table (4.85 m to 6.55 m depending on span)
• Bay distance: 5 m (modular)
• Main profile/frame: 166×88×3 mm, 4-channel extruded aluminium
• Frame manufacturing: hard-pressed extruded aluminium
• Cover material: 850 g/m² PVC-coated polyester fabric
• Flame retardancy: DIN4102 B1, M2
• Fabric options: block-out (opaque) or translucent
• Accessories: sidewalls with windows, ground anchors, weight plates, lining, glass wall and door systems, ABS walling, clear covers, flooring, rain gutters
• Design: modular, extendable/reducible in 5 m sections
• Intended uses: temporary outdoor exhibition halls, ceremonies, weddings, product promotions, sports events, temporary storage, workshops and emergency relief
