Commercial tent disassemblabletransportablemodular
Add to favorites
Compare this product
Characteristics
- Market
- commercial
- Options
- disassemblable, transportable, modular, rental
- Use
- exhibition, event, for sports centers
Description
Overview

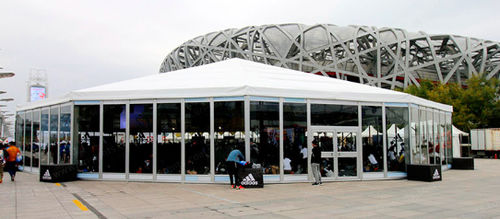

The 12-sided (dodecagonal) tent is offered with two roof shapes: diamond roof and high-peak roof. Based on a 30 m clear-span tent hall, the design adds a high peak and a half-dodecagon bell end while preserving length flexibility and a distinctive polygon profile. The frame is fabricated from hard-pressed extruded aluminum alloy 6061/T6 and the cover is PVC-coated polyester textile (approx. 850 g/m²). The tent withstands wind speeds up to 100 km/h (≈ 0.5 kN/m²).
Application
Improving on the traditional A-frame, this dodecagonal tent provides flexible lengths with a high-peak, multi-end polygon shape. It is suitable for events, sports, exhibitions and ceremonies where a large clear span and a striking roof geometry are required.
Optional Accessories
Product Specification (table)
Span Width | Eave Height | Ridge Height | Side Length | Main Profile
30 m | 3.88 m | 8.8 m | 7.76 m | 300x120x5 mm (4-channel)
Features / Technical specifications
The 12-sided (dodecagonal) tent is offered with two roof shapes: diamond roof and high-peak roof. Based on a 30 m clear-span tent hall, the design adds a high peak and a half-dodecagon bell end while preserving length flexibility and a distinctive polygon profile. The frame is fabricated from hard-pressed extruded aluminum alloy 6061/T6 and the cover is PVC-coated polyester textile (approx. 850 g/m²). The tent withstands wind speeds up to 100 km/h (≈ 0.5 kN/m²).
Application
Improving on the traditional A-frame, this dodecagonal tent provides flexible lengths with a high-peak, multi-end polygon shape. It is suitable for events, sports, exhibitions and ceremonies where a large clear span and a striking roof geometry are required.
Optional Accessories
- PVC transparent side windows
- PVC side walls
- PVC roof
- Plastic walls
- Plastic door
- ABS hard wall
- Ground anchor
- Weight plate
- Wood cassette flooring
- Lining curtains
Product Specification (table)
Span Width | Eave Height | Ridge Height | Side Length | Main Profile
30 m | 3.88 m | 8.8 m | 7.76 m | 300x120x5 mm (4-channel)
Features / Technical specifications
- Model / Name: Dodecagonal (12-sided) Tent
- Roof shapes available: diamond roof, high peak roof
- Side height: 4.00 m (table example for 30 m span: 3.88 m)
- Clear span: example 30 m
- Frame material: extruded aluminum alloy 6061/T6 (four-slot main profiles)
- Cover material: PVC coated polyester textile, approx. 850 g/m²
- Wind resistance: up to 100 km/h (approx. 0.5 kN/m²)
- Main profile example (30 m span): 300x120x5 mm (4-channel); some documents list 300x125x5/8 mm
- Eave height (30 m span): 3.88 m
- Ridge height (30 m span): 8.8 m
- Side length (30 m span): 7.76 m
- Installation: straightforward and quick; suitable for temporary or permanent use
- Typical uses: events, exhibitions, sports, ceremonies
- Accessories: windows, walls, doors, flooring, lining, anchors, weight plates, ABS hard walls, etc.
- 3D model available for visualization (embedded on product page)
