Commercial tent

for event organizationtransportabledisassemblable

Overview

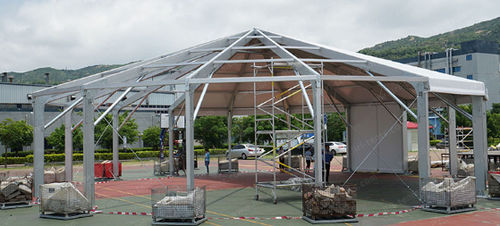

The Liri hexadecagon tent provides a 35 m clear span with side (eave) height approximately 3.88–4.00 m and ridge height around 9.68–9.70 m. The main structure is manufactured from hard-pressed extruded aluminium 6061/T6 (13HW) with a four-channel profile. The cover is a 850 g/m² blackout double PVC-coated polyester textile that is waterproof, UV resistant and flame retardant to DIN4102 B1 / M2. Designed for events, exhibitions, sports and ceremonies, the tent withstands wind loads up to 100 km/h (≈0.5 kN/m²). It can be installed and dismantled quickly and is suitable for temporary or permanent use.

Optional accessories

• White PVC sidewall with clear window
• Transparent PVC sidewalls and roof
• Glass walls and glass doors
• ABS hard walls
• Ground anchors
• Weight plates
• Wood cassette flooring
• Lining curtains

Product specification
Span width: 35 m
Eave (side) height: ~3.88–4.00 m
Ridge height: ~9.68–9.70 m
Side length: 6.82 m
Main profile / section: 300x120x5 mm (4-channel) — examples on some documents: 300x125x5/8 mm (four-slot)

Features / Technical specifications

• Clear span: 35 m
• Side / eave height: ~3.88–4.00 m (nominal)
• Ridge height: ~9.68–9.70 m (nominal)
• Side length: 6.82 m
• Main frame: Hard-pressed extruded aluminium 6061/T6 (13HW); four-channel profile (300x120x5 mm or 300x125x5/8 mm as referenced)
• Cover material: 850 g/m² blackout double PVC-coated polyester textile
• Cover properties: waterproof, flame retardant (DIN4102 B1 / M2), UV resistant
• Wind resistance: withstands wind loading up to 100 km/h (≈0.5 kN/m²)
• Typical uses: events, sports, exhibitions, ceremonies
• Installation: fast and easy to install and dismantle
• Use type: suitable as temporary structure or permanent building
