General Description

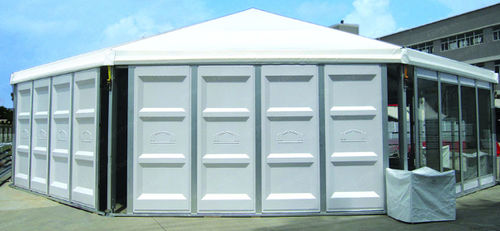

The octagonal tent is available in ET/GT/BT series based on main tube diameter. It offers two roof shapes (diamond and high peak) and an octagonal structure engineered for safety and stability. The tent is designed for wind loading up to 100 km/h (0.5 KN/m2). Installation and dismantling are fast, allowing use as a temporary structure or for long-term/permanent installations.

Roof Shapes

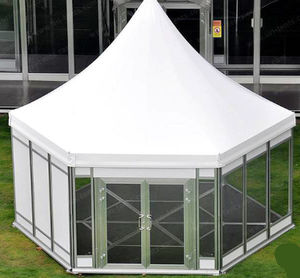

• Diamond
• High peak

Available Eave Heights

• 3.0 m
• 3.3 m
• 3.8 m

Main Profiles

• ET-OCT (152 x 119 x 4 mm)
• GT-OCT (166 x 8 x 3 mm)
• BT-OCT (204 x 120 x 4 mm)

Construction & Materials

• Frame: hard pressed extruded aluminum alloy 6061/T6
• Roof cover: PVC-coated polyester fabric, 650–850 g/sqm
• Fire retardancy: flame retardant to DIN 4102 B1, M2
• UV protection: UV-resistant

Performance & Use

• Designed for 100 km/h wind loads (0.5 KN/m2)
• Suitable for events such as parties, exhibitions, dining halls and other multi-use spaces
• Quick installation and dismantling for temporary use; suitable for long-term or permanent installations

Product Specification
Span Width — Eave Height — Ridge Height — Side Length — Main Profile
15 m — 3.88 m — 6.3 m — 5.74 m — 204x120x4 mm (4-channel)
20 m — 3.88 m — 7.1 m — 7.68 m — 204x120x4 mm (4-channel)

Patent
National patent number: ZL201120397706.8

Related Products

• Multi-sided peaked tents — polygonal tents with pointed roofs (hexagon, octagon, decagon, dodecagon) for enhanced aesthetics
• Twelve-sided tents — with peaked tops and 1/2 twelve-sided end units for large-span applications

Technical Specifications

• Series: ET/OCT, GT/OCT, BT/OCT
• Frame material: extruded aluminum alloy 6061/T6 (hard pressed)
• Roof cover weight: 650–850 g/m2 (PVC-coated polyester)
• Fire resistance: DIN 4102 B1, M2
• UV protection: UV-resistant
• Wind loading capability: designed up to 100 km/h (0.5 KN/m2)
• Span options and related dimensions listed in Product Specification above
• Patent: ZL201120397706.8
