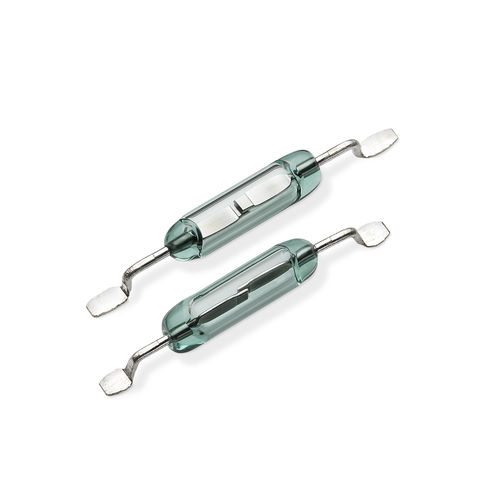

Surface-mount reed switch MISM-7 series

ultra-miniature

The MISM-7 surface mount reed switch is a sub-miniature, normally open switch with a 7mm long x 1.8mm diameter (0.276” x 0.071”) glass envelope, capable of switching up to 0.25 Amps. This reed switch is a surface mount version of the MITI-7. It has a high insulation resistance of 1012 Ohms minimum and a contact resistance of less than 100 milliohms. Features: • Ultra-miniature surface mount normally open switch • Available sensitivity range 6-10 AT • Capable of switching 170 Vdc or 0.25A up to 10 W Applications: • Position Sensing • Level Sensing • Meter Equipment • Security • Office Equipment
