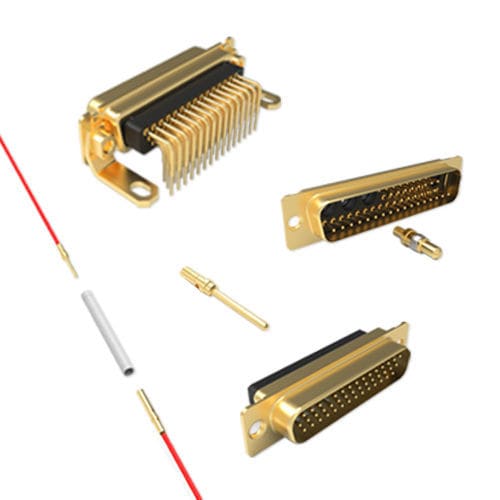

Data connector D-Sub

D-subSMTcoaxial

Overview
Littelfuse D-Sub connectors deliver configurable, mission-ready interconnects for military, aerospace and space systems. Available in standard and high-density formats, these D-Sub connectors are designed for harsh-environment use including satellites, payload harnesses and launchers. They are qualified to ESCC code 3401, MIL-DTL-24308 (DLA) and GSFC-311P (NASA) specifications.

Features

• Standard and high-density shell sizes
• Removable crimp contacts and combo variants with coaxial or power contacts
• Solder cup, SMT, straight and 90° terminations (US and EU footprints); crimp versions with standard, large or reduced contact sizes
• Large fixing option and lightweight backshells available
• Full range of accessories: backshells, jackposts, jackscrews, savers and tooling

Applications

• Aviation, defense and space systems
• Satellites, payload harnesses and launchers — qualified for harsh-environment deployments

Technical specifications

• Standards / Qualifications: ESCC code 3401; MIL-DTL-24308 (DLA); GSFC-311P (NASA)
• Formats: standard and high-density
• Mounting / termination: SMT; solder cup; straight; 90°; crimp variants
• Contact options: removable contacts; removable crimp contacts; combo variants with removable coaxial and power contacts
• Crimp contact sizes: standard, large, reduced
• Filter and Combo D options available
• Accessories: savers, backshells (including lightweight backshell), jackpost, jackscrew, tools
• Designed and qualified for harsh military, aerospace and space environments
