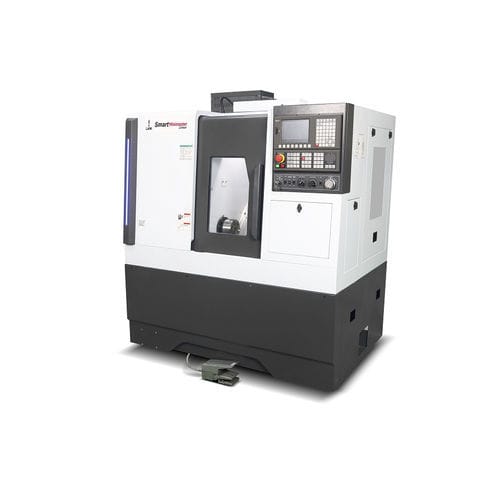

CNC turning center SMART MINIMASTER LINEAR2-axisspindle
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 2-axis
- Other characteristics
- spindle
- Diameter
350 mm
(13.78 in)- Spindle speed
6,000 rpm
(37,699.112 rad.min-1)- Maximum part length
200 mm
(8 in)- Bar capacity
32 mm
(1 in)- Axe X
200 mm
(8 in)- Axe Z
215 mm
(8 in)- Rapids on X
30,000 mm/min
(20 in/s)- Rapids on Z
30,000 mm/min
(20 in/s)- Nominal power
3.7 kW, 5.5 kW
(5 hp, 7.5 hp)- Overall lenght
1,575 mm
(62 in)- Overall width
1,126 mm
(44 in)- Overall height
1,700 mm
(67 in)- Weight
1,800 kg
(3,968 lb)
Description
CAPACITY
Chuck Size - mm - 135
Max. Turning Diameter - mm - Ø130
Admit Between Centres - mm - -
SPINDLE
Spindle Nose - Type - Flat (ɸ110)
Hole through Spindle - mm - Ø36
FEED
Inclination of Carriage - Deg - 45°to Horizontal Plane
TURRET
No. of Stations - Nos - 5
Tool Shank Size - mm - 20 x 20
