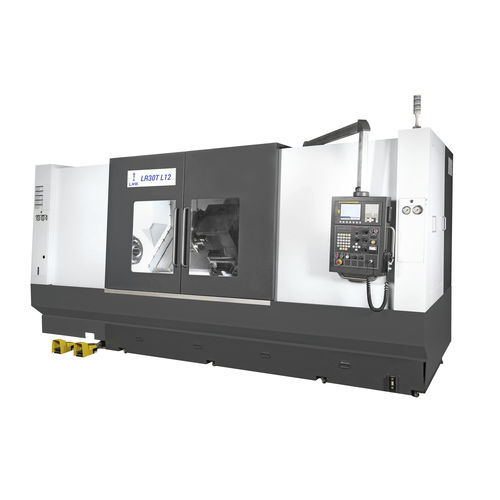

CNC turning center LR30T L122-axisA2-8with turret
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 2-axis
- Spindle mount
- A2-8
- Other characteristics
- with turret, spindle
- Diameter
680 mm
(26.77 in)- Spindle speed
3,500 rpm
(21,991.149 rad.min-1)- Maximum part length
1,201 mm
(47 in)- Bar capacity
50 mm
(2 in)- Axe X
262 mm
(10 in)- Rapids on X
20,000 mm/min
(13 in/s)- Rapids on Z
24,000 mm/min
(16 in/s)- Nominal power
15 kW, 18.5 kW
(20.4 hp, 25.2 hp)- Overall lenght
4,405 mm
(173 in)- Overall width
2,100 mm
(83 in)- Overall height
2,498 mm
(98 in)- Weight
7,500 kg
(16,535 lb)
Description
CAPACITY
Chuck Size - mm - 304
Max. Turning Diameter - mm - 470
Admit Between Centres - mm - 1462
SPINDLE
Hole through Spindle - mm - 77
FEED SYSTEM
Inclination of Carriage - deg - 45o to Horizontal Plane
TURRET
No. of Stations - nos. - 8
Tool Shank Size - mm - 25 x 25
Turret Indexing - Type - Hydraulic
Turret Indexing Time - Sec - 1.5
TAILSTOCK
Quill Diameter - mm - 85
Quill Stroke - mm - 120
Quill Taper. - Type - MT -4
CNC SYSTEM
Controller - Type - Fanuc / Siemens
