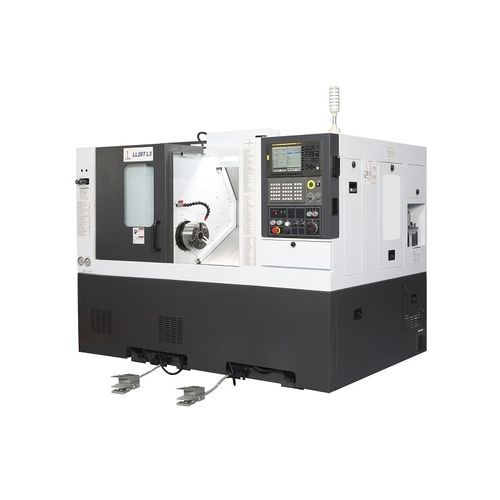

CNC turning center LL20T L32-axisA2-6with turret
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 2-axis
- Spindle mount
- A2-6
- Other characteristics
- with turret, spindle
- Diameter
510 mm
(20.08 in)- Spindle speed
3,500 rpm
(21,991.149 rad.min-1)- Maximum part length
310 mm
(12 in)- Bar capacity
40 mm
(2 in)- Axe X
185 mm
(7 in)- Nominal power
9 kW, 11 kW
(12.2 hp, 15 hp)- Overall lenght
2,065 mm
(81 in)- Overall width
1,925 mm
(76 in)- Overall height
1,680 mm
(66 in)- Weight
3,500 kg
(7,716 lb)
Description
CAPACITY
Chuck dia. Max - mm - 210
Max. Turning Diameter - mm - 320
Admit Between Centres - mm - 440
SPINDLE
Hole through Spindle - Mm - 61
FEED
Inclination of Carriage - deg - 300 to Horizontal Plane
TURRET
No. of Stations - Nos - 8
Tool Shank Size - mm - 25 x 25
Turret Indexing - Type - Hydraulic
Turret Indexing Time - Sec - 0.8 to 1
TAILSTOCK
Quill dia. - mm - 75
Quill stroke - mm - 100
Quill taper - type - MT-4
CNC SYSTEM
Controller - Type - Fanuc / Siemens*
