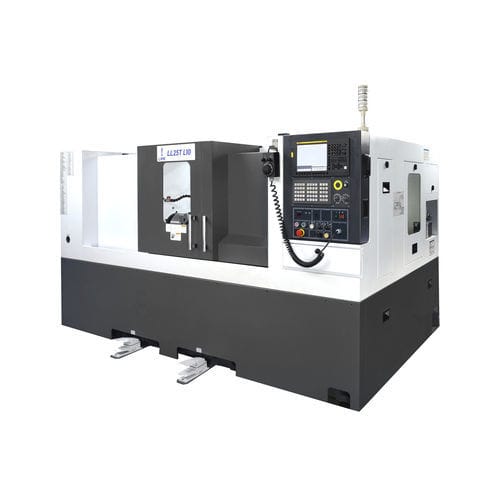

CNC turning center LL25T L102-axisA2-6with turret
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 2-axis
- Spindle mount
- A2-6
- Other characteristics
- with turret, spindle
- Diameter
510 mm
(20.08 in)- Spindle speed
3,500 rpm
(21,991.149 rad.min-1)- Maximum part length
1,020 mm
(40 in)- Bar capacity
40 mm
(2 in)- Axe X
185 mm
(7 in)- Axe Z
1,100 mm
(43 in)- Rapids on X
30,000 mm/min
(20 in/s)- Rapids on Z
36,000 mm/min
(24 in/s)- Nominal power
11 kW, 15 kW
(15 hp, 20.4 hp)- Overall lenght
3,055 mm
(120 in)- Overall width
1,695 mm
(67 in)- Overall height
1,920 mm
(76 in)- Weight
4,200 kg
(9,259 lb)
Description
CAPACITY
Chuck dia. Max - mm - 254
Max. Turning Diameter - mm - 320
Admit Between Centres - mm - 1160
SPINDLE
Hole through Spindle - Mm - 77
FEED
Inclination of Carriage - deg - 300 to Horizontal Plane
TURRET
No. of Stations - nos. - 8
Tool Shank Size - mm - 25 x 25
Turret Indexing - Type - Hydraulic
Turret Indexing Time - Sec - 0.8 to 1
TAILSTOCK
Quill dia. - mm - 85
Quill stroke - mm - 100
Quill taper - mm - MT-5
CNC SYSTEM
Controller - Type - Fanuc / Siemens*
