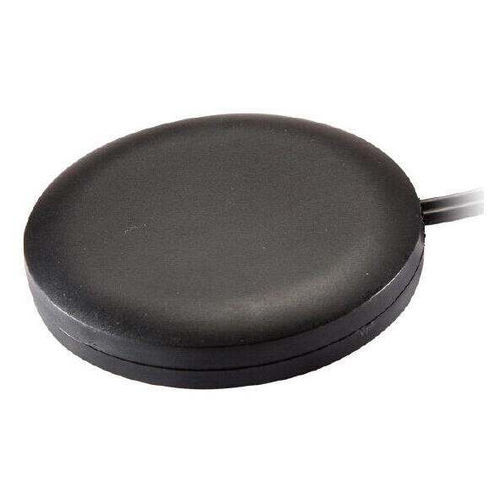

GNSS antenna RT-O-GPSGSM-XG4
GPSGLONASSGSM

GNSS antenna - RT-O-GPSGSM-XG4 - LOGICIO - GPS / GLONASS / GSM
GNSS antenna - RT-O-GPSGSM-XG4 - LOGICIO - GPS / GLONASS / GSM
Add to favorites
Compare this product

Characteristics

Network
GNSS, GPS, GLONASS, GSM
Type
external
Other characteristics
outdoor, IP67, high-performance, linear polarized, flexible
Frequency

Max.: 2,170 MHz

Min.: 824 MHz

Gain

Max.: 5 dB

Min.: 0 dB

Description

High-performance antenna for outdoor installation with magnetic mount for easy and flexible installation. Supports the frequencies of GPS/GLONASS and GSM / UMTS making this antenna the best choice for demanding applications utilizing the RTCU MX2 turbo. It has a SMB female connector for the GNSS and a SMA male connector for the cellular part. Comes with 5 meter cable and can be connected directly to the MX2 series.
