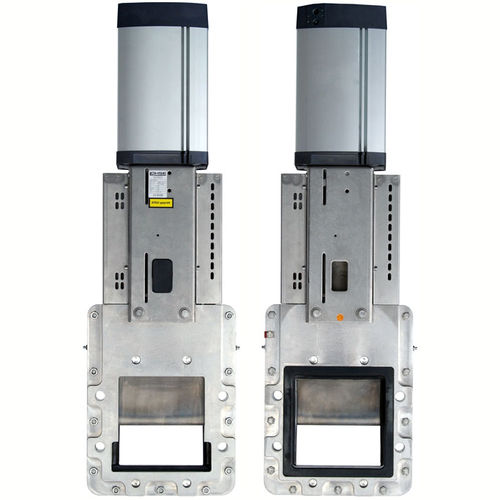

Gate valve AEQ seriespneumatically-operatedshut-offfor water
Add to favorites
Compare this product
Characteristics
- Type
- gate
- Operation
- pneumatically-operated
- Function
- shut-off
- Media
- for water
- Body
- flange, stainless steel
- Applications
- for industrial applications, for the chemical industry
- Associated function
- discharge
- DN
Max.: 600 mm
(23.622 in)Min.: 100 mm
(3.937 in)- Pressure
2 bar, 4 bar, 8 bar
(29 psi, 58 psi, 116 psi)- Temperature
80 °C
(176 °F)
Description
with rectangular inlet and outlet
enables a consistent shut off in the rejects areas of a plant by means of a recess free design (rectangular), built in guides and a specially designed sealing system surface treatment of wearing parts
areas of application:
cleaner plants, heavy weight rejects/ sandtraps/ heavy weight rejects discharge in general, pulpers
nominal diameters:DN 100 – 600 (4 – 24“)
material:stainless steel (1.4571 / 1.4571),
cast iron (EN-GJL-250 / 1.4571)
flanges:DIN EN 1092-1, ANSI B 16.5 class 150, LOHSE-standard
accessories:inlet flange, intermediate piece (square to round)
