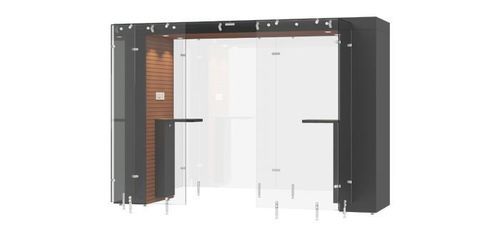

HEPA filter smoking booth SPAREA 3.2m

tempered glassMDFsteel

Overview
The modular SPArea indoor smoking area provides advanced air filtration and is designed for groups of simultaneous smokers. It delivers an exclusive smoking environment with integrated technology that captures harmful gases, particles and odours, protecting surrounding spaces while presenting a refined design for commercial and public settings.

Key Features

• Certified quality and safety.
• Modular, customizable solutions to fit site constraints.
• Multi-stage filtration maintained through routine service for sustained performance.
• Durable components and proven lifecycle performance.

Benefits

• Effectively removes smoke and airborne contaminants to improve ambient air quality.
• Conveniently located units reduce break times and improve flow of personnel.
• Energy-efficient operation with sensor-controlled systems.
• Reduces operating costs and enhances user experience with a controlled, private space.

Recommended Areas of Application

• Suitable where smokers and non-smokers coexist; advanced filtration maintains a comfortable smoke-free atmosphere outside the cabin.
• Applicable to hotels, airports, restaurants, office buildings, public venues and other commercial environments.
• Units can be installed alongside walls and expanded by adding additional modules to increase capacity.

Technology / How it works
The system captures smoke at source and forces gases and particles through a multi-stage filter train. Harmful gases and fine particles are retained in the filters while cleaned, breathable air is returned to the room. Routine maintenance preserves filtration efficiency. Ash and cigarette ends are collected in the integrated aluminum ashtray located inside the cabin.

Entrance Options

• Semi-open
• Soft-close sliding door
• Automatic door

Customization & Accessories

• Optional LED screen
• Various sizes of integrated ashtrays
• Custom colours and finishes

Technical specifications

• Model: SPArea (displayed on page as SPArea 3.2m Indoor Smoking Area)
• Dimensions (L × D × H) – Weight incl. filters: 3200 × 2000 × 2200 mm – ≅ 825 kg
• Main housing material: frame housing: Steel SPCC 1.5 mm; front panels: Medium Density Fiberboard (MDF)
• Main housing colours: frame: powder-coated steel RAL 9005 (Black) or RAL 9006 (Grey); wooden panel: Mahogany or Maple; other colours optional
• Glass: 8 mm tempered glass
• Simultaneous users: Up to 10 people (typical cabin accommodates up to 8 smokers; capacity expandable by adding modules)
• Minimum starting area referenced: starts at 6.7 m² (modular, expandable)
• Adjustability: Variable airflow speeds for standby and operating modes
• Power saving: Sensor activation on entry reduces lighting and ventilation power consumption
• Modular construction: Easy to reduce or expand cabin size; freestanding and movable
• Entrance options: Semi-open; Soft-close sliding door; Automatic door
• Customization (optional): LED screen, various integrated ashtray sizes, custom colours
