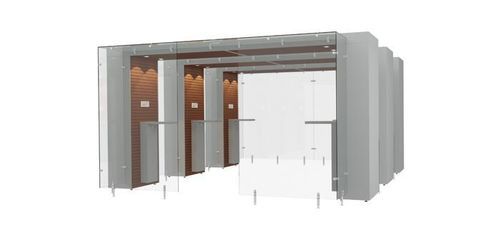

HEPA filter smoking booth 3SPArea 4m

tempered glassMDFsteel

Product overview
The 3SPArea 4m indoor smoking cabin is a modular solution that provides controlled smoke extraction and advanced air filtration for shared indoor environments. Designed to accommodate larger groups, the unit is freestanding and expandable by adding modules. Integrated filtration removes gases, particles and odors to limit smoke transfer to adjacent areas.

Key features

• Tested and certified for quality and safety.
• Modular and customizable configurations to fit site requirements.
• Filtration performance preserved through routine maintenance.
• Designed for long service life with replaceable filter components.

Recommended areas of application

• Public buildings, transport hubs, office complexes and hospitality venues where controlled smoking zones are required.
• Cabin capacity scalable; standard 3SPArea 4m unit supports up to 35 simultaneous users; additional modules can increase capacity.
• Standard starting size: 20.1 m2. SP Series units are commonly installed adjacent to walls.

Benefits

• Removes smoke from the indoor atmosphere, improving air quality for non-smoking occupants.
• Shorter, convenient smoking breaks due to dedicated on-site location.
• Energy-efficient operation with sensor-based control of lighting and ventilation.
• Built-in filter systems facilitate safe operation for visitors, staff and customers.
• Movable, freestanding design enables flexible site planning.
• Customizable capacity and easy-to-clean interior components.

Entrance options

• Semi-Open
• Soft Close Sliding Door
• Automatic Door

Features

• Adjustability: Variable airflow speeds for standby and operating modes.
• Power saving: Sensor activation on entry adjusts lighting and ventilation to reduce consumption.
• Modular construction: Easy to reduce or expand cabin size; freestanding and movable.
• Optional customization: LED screen, integrated ashtrays of various sizes, customized colours.
• Ash disposal: Aluminum ashtray installed inside the cabin for ash and cigarette ends.

Technical specifications

• Model: 3SPArea 4m Indoor Smoking Area
• Dimensions (L x D x H) – Weight incl. filters: 4000 x 5400 x 2200 mm
• Main housing material: Frame housing: Steel SPCC 1.5 mm; Front panels: Medium Density Fiberboard (MDF)
• Main housing colours: Frame housing powder coated steel RAL 9005 (Black) or RAL 9006 (Grey); Wooden panel: Mahogany or Maple; other colours optional
• Glass: 8 mm tempered glass
• Simultaneous users: Up to 35 people (recommended)
• Adjustability: Variable airflow speeds for standby and operating modes
• Power saving: Sensor activation upon entry adjusts lighting and ventilation to reduce consumption
• Modular construction: Easy to reduce or expand cabin size; freestanding and movable
• Entrance options: Semi-Open, Soft Close Sliding Door, Automatic Door
• Customization options: LED screen, integrated ashtrays of various sizes, customised colours
