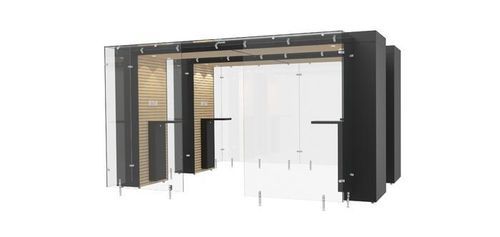

HEPA filter smoking booth 2SPArea 4m

activated carbontempered glassMDF

Overview
The 2SPArea 4m is a modular indoor smoking cabin designed to concentrate and filter tobacco smoke in shared environments. It is sized for larger groups and adaptable through module addition, providing controlled ventilation and filtration to limit smoke dispersion while maintaining a dedicated space for smokers.

Key Features

• Modular freestanding construction for easy expansion or reduction.
• Frame housing: steel SPCC 1.5 mm; front panels: MDF; 8 mm tempered glass.
• Variable airflow speeds with sensor-activated standby to reduce power use.
• Customizable finishes and optional integrated ashtrays or LED screen.
• Filtration system compatible with HEPA and activated carbon elements.

Benefits

• Captures and filters smoke to reduce airborne contaminants in adjacent areas.
• Supports organized, shorter smoking breaks through convenient placement.
• Energy-saving operation via entry sensors and adjustable ventilation.
• Enables coexistence of smokers and non-smokers with reduced nuisance.
• Designed for straightforward maintenance to preserve filtration effectiveness.
• Movable and adaptable to changing floorplans.

Recommended Areas of Application

• Indoor public or workplace areas where smokers and non-smokers share space.
• Suitable for up to 25 simultaneous users; capacity scalable by adding modules.
• Base footprint starts at 13.4 m²; units commonly installed alongside walls.

Entrance Options

• Semi-Open
• Soft Close Sliding Door
• Automatic Door

Technology & Filtration
The cabin's filtration system captures smoke and gases before air is returned to the room. Air passes through staged filters that trap fine particles and adsorb odors and gases. Typical configurations include HEPA filtration for particulate removal and activated carbon layers for volatile compounds. Regular maintenance and filter replacement are required to sustain performance.

Caractéristiques / Spécifications techniques

• Model: 2SPArea 4m Indoor Smoking Area
• Dimensions (L x D x H): 4000 x 3700 x 2200 mm
• Main housing material: Frame housing: Steel SPCC 1.5 mm; Front: Medium Density Fiberboard (MDF)
• Main housing colors: Frame housing: Powder coated steel RAL 9005 (Black) or RAL 9006 (Grey); other colors optional. Wooden panel: Mahogany or Maple; other colours optional.
• Glass: 8 mm tempered glass
• Simultaneous users: Up to 25 people (recommended typical adult occupancy; actual comfort may vary)
• Adjustability: Variable airflow speeds for standby and operating modes
• Power saving: Sensor activation on entry reduces power consumption by adjusting lighting and ventilation speed
• Modular construction: Easy to reduce or expand cabin size; freestanding and movable
• Entrance options: Semi-Open, Soft Close Sliding Door, Automatic Door
• Customization (optional): LED screen, various sizes of integrated ashtrays, customised colours
• Features: Efficient performance filtration system; lifelong performance guarantee; heavy-duty and hustle-free installation and operation
