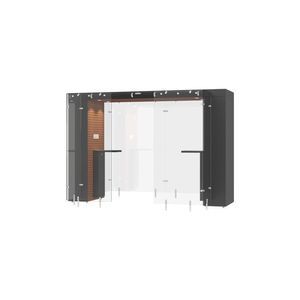

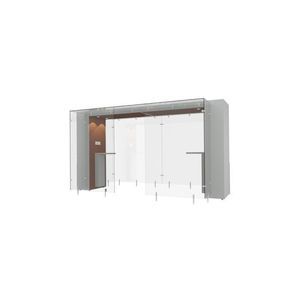

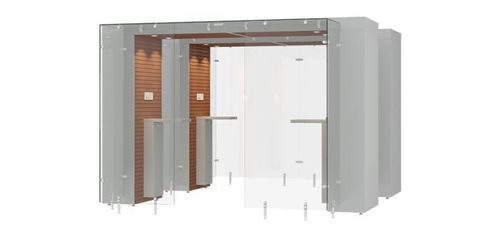

HEPA filter smoking booth 2SPArea 3.2m

tempered glassMDFsteel

Product overview
The 2SPArea 3.2m is a modular indoor smoking cabin designed to provide controlled air filtration for groups. Its modular design allows expansion or reduction of the cabin footprint while maintaining filtration performance and user comfort.

Experience
Provides a dedicated environment for groups of smokers without dispersing smoke into surrounding areas. The integrated filtration system captures gases, particles and odors to maintain breathable air in adjacent zones and improve comfort for both smokers and non-smokers.

Key features

• Certified air filtration and safety performance.
• Modular and customizable configuration options.
• Efficient filtration maintained by routine service for sustained air-cleaning performance.
• Designed for long service life under normal maintenance.

Recommended areas of application
Suitable for airports, hotels, offices, conference centers and other public or commercial spaces where smoking needs to be contained. The cabin accommodates up to 16–20 smokers depending on layout; capacity can be increased by adding modules. Base area starts at 13.4 m2. SP Series units are commonly installed alongside walls or as freestanding units.

Benefits

• Enables coexistence of smokers and non-smokers without frequent exposure to secondhand smoke.
• Advanced filters capture fine particles and odors to reduce indoor air contamination.
• Flexible placement and modular sizing adapt to site constraints.
• Clean, professional appearance suited to commercial and public environments.
• Movable and reconfigurable for changing operational needs.
• Customizable capacity and optional accessories to match user requirements.
• Designed for ease of cleaning and routine maintenance.
• Provides a proven solution for managing smoking in diverse settings.

Technology / How it works

• 1 - Smoke is contained within the cabin; the filtration system captures smoke before it exits the enclosure.
• 2 - Gases pass through multi-stage filters where harmful components are retained.
• 3 - Filtration removes fine particles and converts polluted air back to clean, breathable air while trapping contaminants in the filters.
• 4 - Ash and cigarette ends are disposed into the aluminum ashtray located inside the cabin.

Technical information (table)
Model: 2SPArea 3.2m Indoor Smoking Area
Dimensions (L x D x H) – Weight incl. filters: 3200 x 3700 x 2200 mm – ≅ 1315 kg
Main housing material: Frame housing: Steel SPCC 1.5 mm; Front: Medium Density Fiberboard (MDF)
Main housing colors: Frame housing: Powder coated steel RAL 9005 (Black) or RAL 9006 (Grey). Other colors optional. Wooden Panel: Mahogany or Maple. Other colours optional.
Glass: 8 mm tempered glass
Simultaneous users*: Up to 20 people
*The recommended number of simultaneous users is based on typical adult occupancy under standard operating conditions. Actual comfort and usable space may vary depending on individual preferences, clothing, and any personal items or luggage brought into the cabin.
FEATURES
Adjustability: Variable airflow speeds for standby and operating modes.
Power saving: Sensor activation upon entry reduces power consumption by adjusting lighting and ventilation speed.
Modular construction: Easy to reduce or expand cabin size. Freestanding and movable.
Entrance options: Semi-Open, Soft Close Sliding Door, Automatic Door
Customization (optional): LED screen, various sizes of integrated ashtrays, and customised colours.

Specifications / technical data

• Model: 2SPArea
• Commercial designation on page: 2SPArea 3.2m
• Dimensions (L x D x H): 3200 x 3700 x 2200 mm
• Weight (incl. filters): ≅ 1315 kg
• Main frame material: Steel SPCC 1.5 mm
• Front panel: MDF (Medium Density Fiberboard)
• Frame housing colors: Powder coated steel RAL 9005 (Black) or RAL 9006 (Grey); other colours optional
• Wooden panel options: Mahogany or Maple (other colours optional)
• Glass: 8 mm tempered glass
• Simultaneous users capacity: Up to 20 people (typical recommended occupancy guidance)
• Adjustability: Variable airflow speeds for standby and operating modes
• Power saving features: Sensor activation on entry adjusts lighting and ventilation speed
• Modular construction: Expandable/reducible cabin size; freestanding and movable
• Entrance options: Semi-Open, Soft Close Sliding Door, Automatic Door
• Optional customization: LED screen, various integrated ashtray sizes, customised colours
• Included ashtray: Aluminum ashtray inside cabin for ash and cigarette ends
