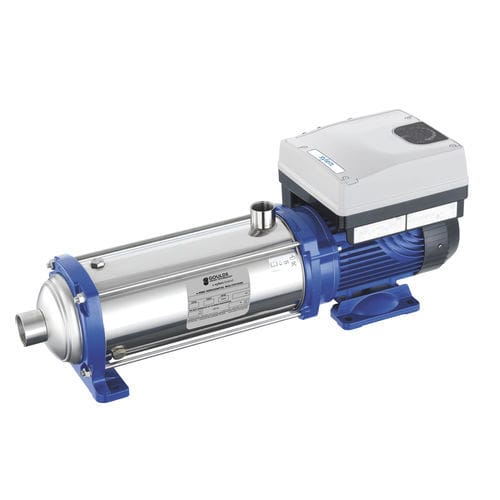

In-line pump

centrifugalwaterelectric

Multipump capability: up to 3 units Power supply: single phase 50/60 Hz Communication: BACnet and Modbus standard in single pumps IES2 package with IE5 motors Enclosure rate: IP55 EMC: C1-category compliant with EN 61800-3 for residential environment Harmonics: compliant with IEC/EN 61000-3-2 A complete system delivering market-leading efficiency The Lowara Smart Pump range incorporates state-of-the-art technology to optimize performance, communicate with other building systems and help you achieve your goals. Choose pre-programmed packages for easy, cost-effective installation — and benefit from this system’s power, intelligence and performance. Power: Best-in-class IE5 motor Technical Specification IEC/TS 60034-30-2 introduces “ultra-premium” IE5 efficiency performance. It’s the top efficiency level for motors designed to not operate directly on-line. Each Lowara Smart Pump is equipped with a permanent magnet motor that meets this IE5 standard, providing efficiency well above a standard IE3 asynchronous motor. Intelligence: Embedded motor drive The smart, easy-to-set integrated drive can operate single, twin or multipump systems of up to three pumps, with no need for an external control panel or PLC. The drive matches performance to demand, reducing energy use. And it allows smart pumps to communicate with other building systems in real time, maximizing efficiency. Performance: Robust pump range A full line of single-phase pumps provides enhanced hydraulic performance for residential, light industrial and OEM applications. The Smart Pump range can easily handle extreme environments, from -20°C to 50°C, without derating performance.
