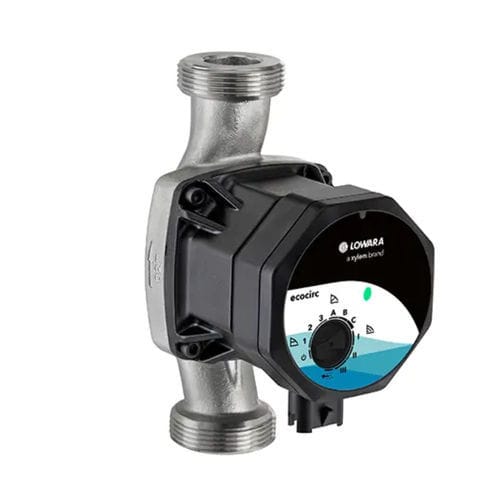

Water pump Ecocirc N
airelectriccentrifugal

water pump
water pump
Add to favorites
Compare this product


Characteristics

Fluid
water, air
Operation
electric
Technology
centrifugal
Mobility
stationary
Domain
industrial
Applications
circulation, control, control, purge
Material
stainless steel
Voltage
220 V, 240 V
Other characteristics
compact, standard, automatic
Flow

Max.: 4.5 m³/h
(158.916 ft³/h)

Min.: 0 m³/h
(0 ft³/h)

Pressure

10 bar
(145.038 psi)

Head

Max.: 8 m
(26'02" )

Min.: 0 m
(0'00" )

Power

60 W
(0.08 hp)

Fluid temperature

Max.: 110 °C
(230 °F)

Min.: -10 °C
(14 °F)

Description

High efficiency pumps with ECM-technology and permanent magnet rotor Low power consumption EEI ≤0.18 Stainless steel pump housing Control modes: Proportional Pressure Constant Pressure Constand Speed Automatic “air purge” Plug Insulation shell Head: up to 8 m ecocirc N – a smarter choice The Lowara Ecocirc N circulation pumps are designed for water circulation in domestic hot water systems. With 14 models and multiple control modes, the new Ecocirc range offers a smarter choice in the domestic hot water circulators market by combining high efficiency, simplicity and reliability in a single cost effective package. Compact and easy to install, all models feature a unique “one turn” knob to set up control modes and speed settings. An interchangeable plug connection, automatic air-purge and a multicolor LED come as standard. The full Ecocirc range reaches an EEI level ≤ 0.18. The pump can be used for: Refurbishment or extension of existing systems Single-family houses or apartment buildings Domestic hot water systems
