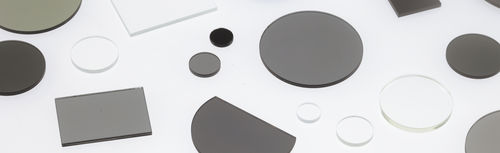

Quartz waveplate SB-RETAX-5L-1/2λ

Overview
Constant linear 1/2λ retardance is achieved across a broad spectral range (450–1100 nm) for linearly polarized incident light. The plate is manufactured by laminating birefringent resin films between glass substrates (optical glass or quartz), enabling fabrication of larger diameters (>30 mm) and stable broadband performance.

Specifications
Item numbers:
SB-RETAX-5L-1/2λ-20
SB-RETAX-5L-1/2λ-25
SB-RETAX-5L-1/2λ-30

Options

• Without axis marks to indicate optical axis direction.
• Custom sizes and shapes (including conversion between inch and metric dimensions).
• Mass-production versions available on request.

Technical characteristics

• Retardance type: Constant linear half-wave (1/2λ).
• Operational wavelength: 450 nm to 1100 nm (constant retardation across this range).
• Construction: Laminated birefringent resin films within glass substrates.
• Substrate options: Optical glass, quartz.
• Maximum/custom size: Fabrication possible for diameters >30 mm; other sizes/shapes on request.
• Variants: SB-RETAX-5L-1/2λ-20, SB-RETAX-5L-1/2λ-25, SB-RETAX-5L-1/2λ-30.
• Function: Alters polarization direction and transmitted intensity for linearly polarized light across a broadband.
