Quartz waveplate SB-RETAX-3L-1/2λ

for linear polarization conversion

Product Overview
Constant linear 1/2λ retardance is realized across a broad wavelength range when linearly polarized light passes through this waveplate. The waveplate is fabricated by laminating birefringent resin films within glass substrates such as optical glass and quartz, providing excellent optical characteristics. Use of resin film enables fabrication of larger sizes (more than 30 mm diameter). For limited wavelength regions, products can be customized based on optical design.

Function
SB-RETAX-3L-1/2λ provides constant linear half-wave (1/2λ) retardation across a broad wavelength range. This waveplate rotates the polarization direction and alters the transmitted polarization state for broadband linearly polarized light.

Specification
Item number
SB-RETAX-3L-1/2λ-20
SB-RETAX-3L-1/2λ-25
SB-RETAX-3L-1/2λ-30

Option
* Without axis marks to indicate an optical axis direction. Axis marks can be provided upon request.
* Sizes and shapes other than standard products can be customized (for example, converting inch sizes to metric).
* Mass production options are available.

Images

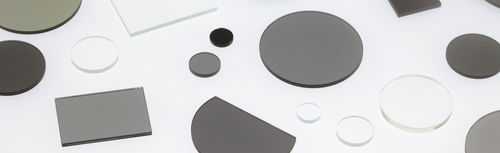

Product images available illustrating the waveplate construction and examples of BROAD RETAX series items.

Technical specifications

• Type: Broadband waveplate (SUPER BROADBAND RETAX, 3-layer structure)
• Retardation: Constant linear 1/2λ across broad wavelength range
• Construction: Laminated birefringent resin films within glass substrates (optical glass, quartz)
• Max recommended size: Possible fabrication for diameters larger than 30 mm due to resin film usage
• Customization: Available for limited wavelength regions and for non-standard sizes/shapes
