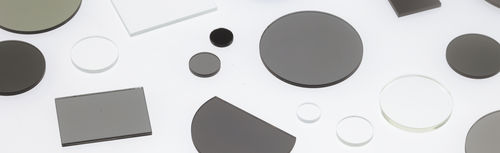

Quartz waveplate SB-RETAX-3L-1/4λ

Product name
SUPER BROADBAND RETAX (3 Layers)(SB-RETAX-3L-1/4λ)

Description
Constant linear 1/4λ retardance is realized across a broad wavelength range when linearly polarized light passes through this quarter-wave plate. The element is manufactured by laminating birefringent resin films between optical glass or quartz substrates, enabling good optical characteristics and the possibility to fabricate larger diameters (>30 mm). For applications limited to a specific wavelength range, the product can be optically customized.

Specification
Item number:
SB-RETAX-3L-1/4λ-20
SB-RETAX-3L-1/4λ-25
SB-RETAX-3L-1/4λ-30

Options:

• Omit axis marks indicating the optical axis direction
• Custom sizes and shapes available (metric/inch conversions possible)
• Mass production options available

Technical specifications

• Retardation: Constant linear 1/4λ over a broad wavelength range
• Construction: Laminated birefringent resin films within optical glass or quartz substrates
• Function: Can be combined with a broadband polarizer to form a super broadband circular polarizer (acts as an optical isolator for reflected light)
• Available sizes: Standard diameters; fabrication possible for sizes larger than 30 mm
• Customization: Size, shape and marking options; suitable for mass production
