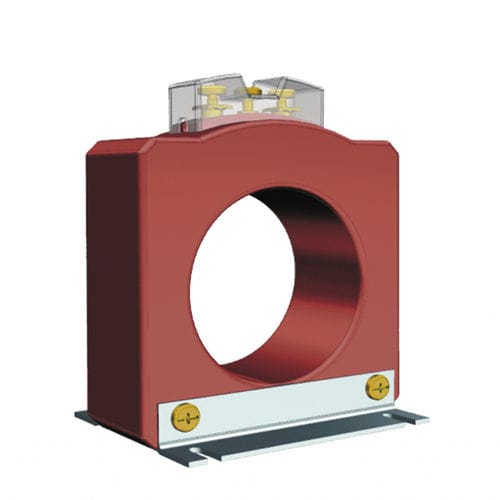

Current transformer LRCcast resinlow-voltagevoltage
Add to favorites
Compare this product
Characteristics
- Type
- current
- Configuration
- cast resin
- Electrical characteristics
- low-voltage, voltage
- Other characteristics
- epoxy resin, primary, secondary
- Primary voltage
0.7 kV
- Primary current
Min.: 60 A
Max.: 5,000 A
- Secondary current
1 A, 5 A
Description
Resin cast CTs of LRC series are molded with epoxy resin. This is a recommended solution for outdoor applications exposed to adverse environmental factors such as: extreme temperature, increased humidity, rain, dust, etc.
Features:
-Primary winding flooded with an epoxy composition providing permanent resin insulation.
-Wide current range from 6 0A up to 5000 A.
-Maximum operating voltage 0.72kV.
-Secondary currents 1A or 5A.
-Transparent terminal cover.
-Terminals of the secondary circuit are protected by a transparent cover that protects them against accidental contact.
-A complete set of accessories in a standard enabling wall mounting of the transformer.
External dimension: depends on version
