Barrel pump AP200

for adhesiveselectricmobile

Product Description

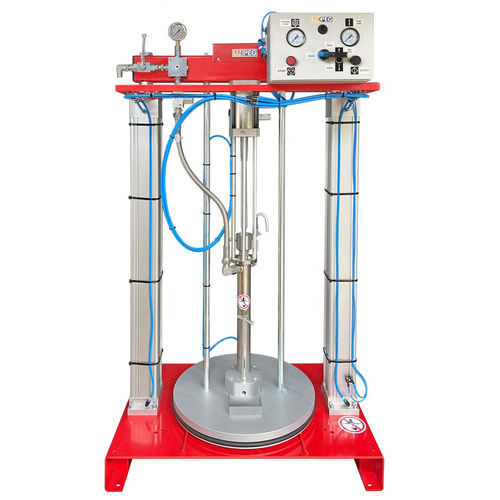

Our drum pump AP200-56-1 enables the transfer of adhesives and sealants. It can be used to supply one or more dispensing workstations or dispensing systems, as well as for filling cartridges. This allows the use of large containers to save costs on material compared to cartridges and reduce waste. The follower plate allows for almost complete drum emptying. Ideal for viscous media, as used in industry or crafts. The system comes standard with an acoustic empty signal and automatic shutdown when the drum is empty.

Technical Data
Pressure ratio 56:1
Maximum pressure 310 bar
Air consumption 220 l/min
Input pressure (air) 3-8 bar
Weight (without drum) 205 kg

Options

• Electric empty signal
• Pre-warning for empty signal (electric)
• Follower plate heating
• Mobile version
• Hydraulic lift and/or drive
• Electric drive

Features / Specifications

• Transfer of adhesives and sealants from 200-liter drums
• Suitable for supplying dispensing workstations, dispensing systems, or filling cartridges
• Almost complete drum emptying with follower plate
• Acoustic empty signal and automatic shutdown when drum is empty
• Pressure ratio: 56:1
• Maximum pressure: 310 bar
• Air consumption: 220 l/min
• Input pressure (air): 3-8 bar
• Weight (without drum): 205 kg
