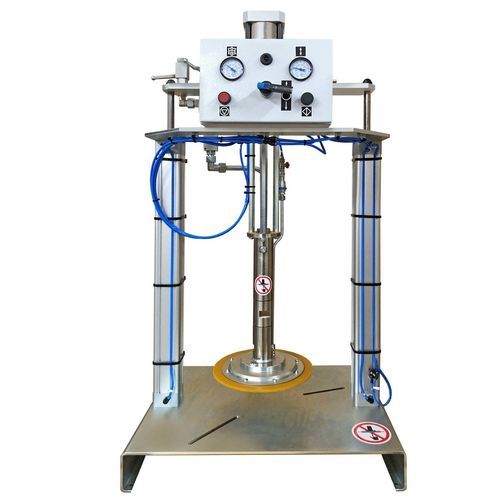

Barrel pump AP80-56-1

for adhesiveselectricmobile

Product Description
Our drum pump AP200-56-1 enables the transfer of adhesives and sealants. It can be used to supply one or more dispensing workstations or dispensing systems, as well as for filling cartridges. This allows the use of large containers to save costs on material compared to cartridges and reduce waste. The follower plate allows for almost complete drum emptying. Ideal for viscous media, as used in industry or crafts. The follower plate is custom-made to fit the drum. For cylindrical drums, follower plates with O-rings are used, and for conical drums, sealing lips are used. The system comes standard with an acoustic empty signal and automatic shutdown when the drum is empty.

Technical Data

Pressure Ratio	56:1
Maximum Pressure	310 bar
Air Consumption	220 l/min
Input Pressure (Air)	3-8 bar
Weight (without drum)	75 kg
Drum Diameter	275 mm to 400 mm
Drum Height	up to 750 mm

Options

• Electric empty signal
• Pre-warning for empty signal (electric)
• Follower plate heating
• Mobile version
• Hydraulic lift and/or drive
• Electric drive

Features / Specifications

• Precise dosing of viscous adhesives and sealants directly from drums of 30 to 80 kg
• Almost complete drum emptying with follower plate
• Acoustic empty signal and automatic shutdown when drum is empty
• Suitable for industrial and craft applications
• Drum diameter: 275 mm to 400 mm, Drum height: up to 750 mm
• Pressure ratio: 56:1, Maximum pressure: 310 bar
• Air consumption: 220 l/min, Input pressure (air): 3-8 bar
• Weight (without drum): 75 kg
