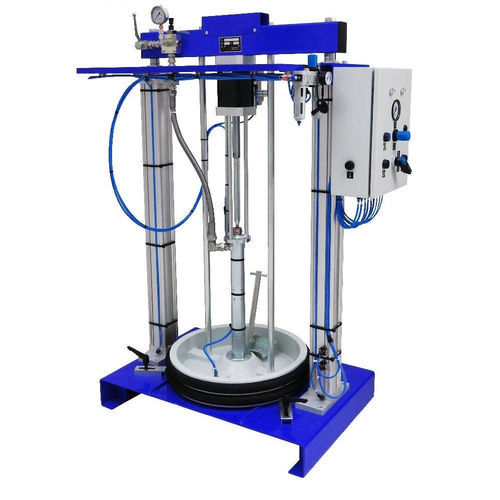

Pneumatic grease pump GP200-56-1

pistonfollower plate

Product Description
Our GP200-56-1 drum pump enables the transfer of grease from 200-liter drums. It can be used to supply one or more dosing workstations or dosing systems, as well as for filling cartridges, buckets, or other containers. It is also suitable for use as a central material supply, e.g., via a ring line.
This allows the use of large containers to save costs on material compared to cartridges and reduce waste.
The follower plate allows for almost complete drum emptying. Ideal for pasty lubricants.
A piston pump is used. A material filter ensures that no contaminants are transferred, thus protecting subsequent components such as dosing valves.
The system comes standard with an acoustic empty signal and automatic shutdown when the drum is empty.

Technical Data
Pressure Ratio | 56:1
Maximum Pressure | 310 bar
Air Consumption | 220 l/min
Input Pressure (Air) | 3-8 bar
Flow Rate | up to 0.65 liters per minute
Weight (without drum) | 205 kg

Options

• Electric empty signal
• Pre-warning for empty signal (electric)
• Pressure relief
• Two-hand control
• Follower plate heating
• Mobile version
• Hydraulic lift and/or drive
• Electric drive

Features / Specifications

• Transfer of grease from 200-liter drums
• Almost complete drum emptying with follower plate
• Piston pump with material filter
• Acoustic empty signal and automatic shutdown
• Various options for individual requirements
