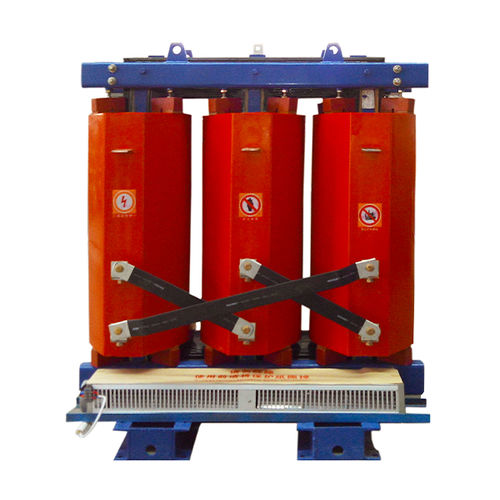

Phase-shifting transformer SC11-800 10/0.4

distributiondryfor industrial applications

Product Overview: As a phase-shifting transformer, it precisely regulates the voltage phase. It optimizes power quality, balances three-phase loads, and improves the operation efficiency of the power grid. It is a key equipment in power engineering and industrial power supply. Specific Introduction: 1. Precise Phase-shifting Function With special winding and electromagnetic structures, it precisely controls the phase shift. It solves the problem of three-phase imbalance, reduces reactive power transmission, increases the power factor, reduces line losses, and reasonably distributes electrical energy. 2. Solid and Reliable Structure It is formed into a solid body by epoxy resin casting, which is resistant to earthquakes and short circuits. Its performance is stable under complex power environments. With a compact structure, it is convenient for installation and maintenance and can operate reliably in multiple sites to ensure the stability of the power system. Overall and Installation Dimensions A) Altitude: Not exceeding 1000m, shall be derating used if above 1000m; B) Ambient Temperature: -25℃~55℃. C) Relative Humidity: ≤95%; D) As to the installation site, to make sure no bad effect on transformer insulation, chemical deposition, dust, and other explosive or erosive medium. E) The supply voltage approximates sinusoidal wave, and the three-phase voltage is relatively balanced.
