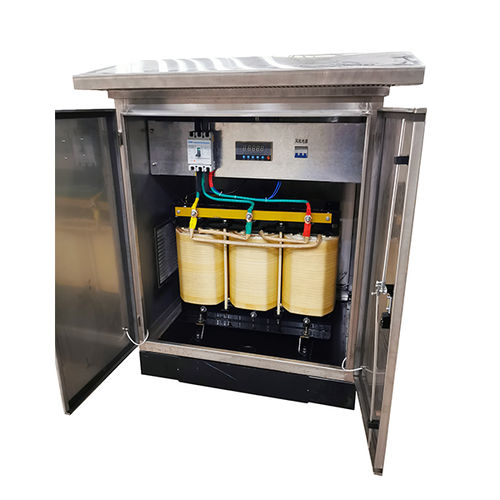

Power transformer SG-150k

isolationdryfor wind turbine

Product Overview: Vacuum-sintered transformers are designed for low-volt., high-current apps., efficiently converting power and stably supplying for industries. Specific Introduction: 1.Safety Protection Cabinet: Equipped with a cabinet, it effectively prevents accidental electric shock of personnel, blocks the ingress of dust and water, and adapts to harsh environments such as humidity and dust. 2.Equipped with Circuit Breakers: The three-phase dry-type transformer is equipped with a breaker. On overload or short circuit, it cuts the circuit fast, stops fault spread, averts equipment damage and fire, boosting safety and stability of operation and power systems. 3.Low Voltage and High Current Electrical Characteristics: Special winding design, outputs low voltage and high current, with high power conversion efficiency. In rapid heating scenarios like metal heat treatment, fast temperature rise, optimized process, enhanced energy efficiency, ensuring production. Operation Environment A) Altitude: Not exceeding 1000m, shall be derating used if above 1000m; B) Ambient Temperature: -25℃~55℃. C) Relative Humidity: ≤95%; D) As to the installation site, to make sure no bad effect on transformer insulation, chemical deposition, dust, and other explosive or erosive medium. E) The supply voltage approximates sinusoidal wave, and the three-phase voltage is relatively balanced.
