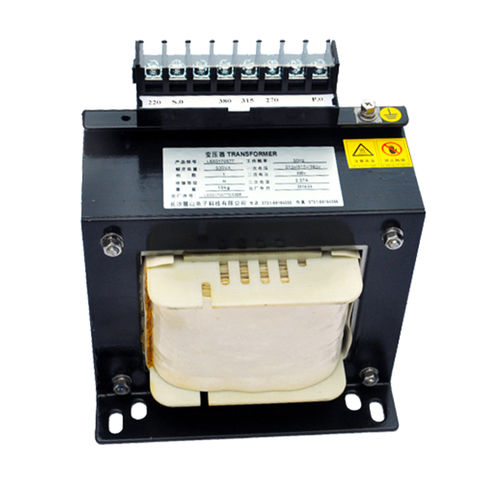

Current transformer TD-800VA 400V-220V

powerdrysolar

800VA Single-Phase Transformer for Photovoltaic Systems Engineered for medium-scale solar applications, this 800VA single-phase transformer delivers efficient power isolation and voltage regulation in PV systems. With Vacuum Pressure Impregnation (VPI) technology and a Class B insulation rating, it offers compact dimensions and robust performance for residential/commercial solar inverters and energy storage setups. Key Features: 1.VPI-Processed Durability a. VPI-treated windings ensure void-free resin encapsulation, enhancing moisture resistance (suitable for 85% RH environments) and dielectric strength (≥4kV). b. Class B insulation (130°C thermal rating) guarantees stability under high solar irradiance and prolonged load cycles. 2.Ultra-Compact Design a. Space-saving structure (e.g., 200mm × 120mm × 100mm) minimizes footprint for easy integration into inverters, combiner boxes, or rooftop PV modules. b. Lightweight (<4.5kg) construction with reinforced aluminum brackets supports vertical/horizontal mounting in confined spaces. 3.High Efficiency & Solar Compatibility a. Low no-load losses (97% efficiency optimize energy yield in grid-tied or off-grid solar systems. b. Wide input voltage range (150-600V DC/AC) adaptable to PV strings, microinverters, and battery interfaces. c. EMI suppression (<15mV noise) and harmonic filtering meet IEC 62109-1 standards for safe grid interaction.
